Disassembly And Assembly: Notes

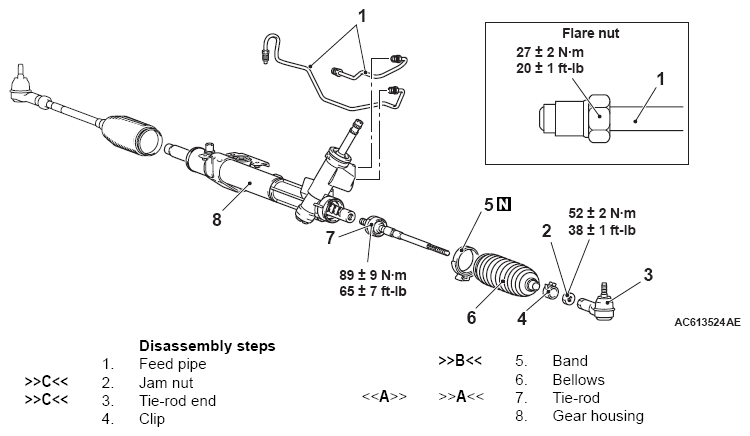

Fig 1: Disassembled View Of Power Steering Gear With Torque Specifications
G07032713Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
