TRANSMISSION RANGE SWITCH CONTINUITY CHECK

Item	Terminal number	Resistance value
P	3 - 2, 7 - 10	Continuity exists (2 Ω or less).
R	3 - 9
N	3 - 8, 7 - 10
D	3 - 5
L < Vehicles without sport mode >	3 - 1

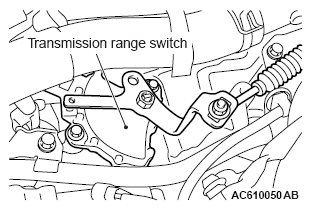

Fig 1: Identifying Transmission Range Switch

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Identifying Transmission Range Switch Terminals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
