Disassembly And Assembly: Notes

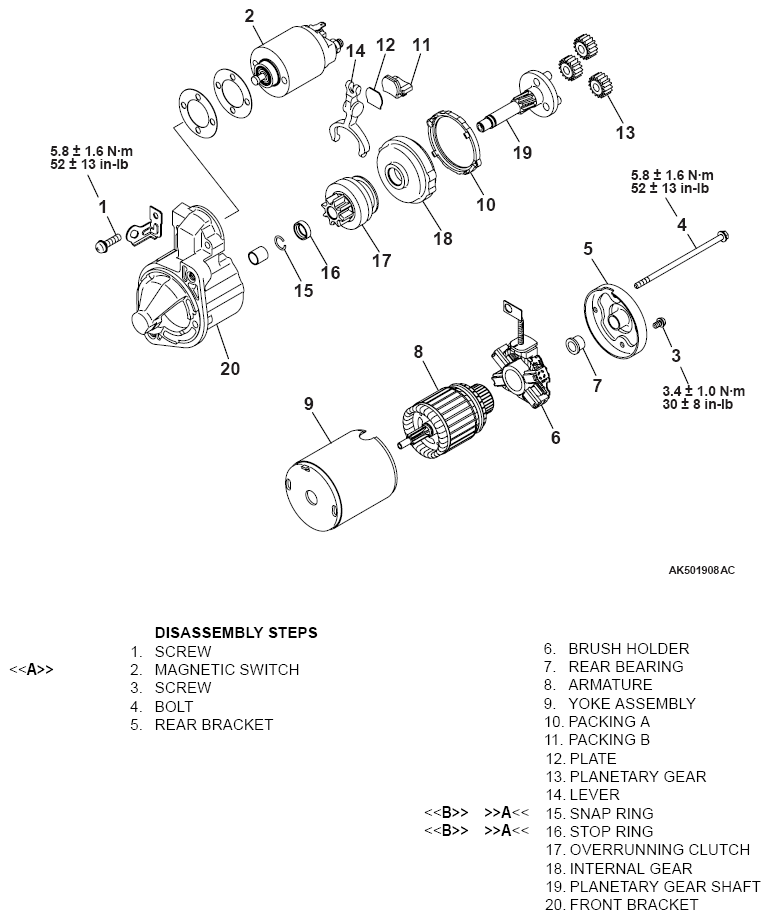

Fig 1: Exploded View Of Starter Motor Assembly Components With Torque Specifications
G07033918Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
