Home › Mitsubishi › 2011 › Lancer ES, 4D Hatchback, Standard › Repair and Diagnosis › Restraints › Passive Restraints › Interior - Except Lancer Evolution › Floor Console Assembly › Removal And Installation › Notes

Removal And Installation: Notes

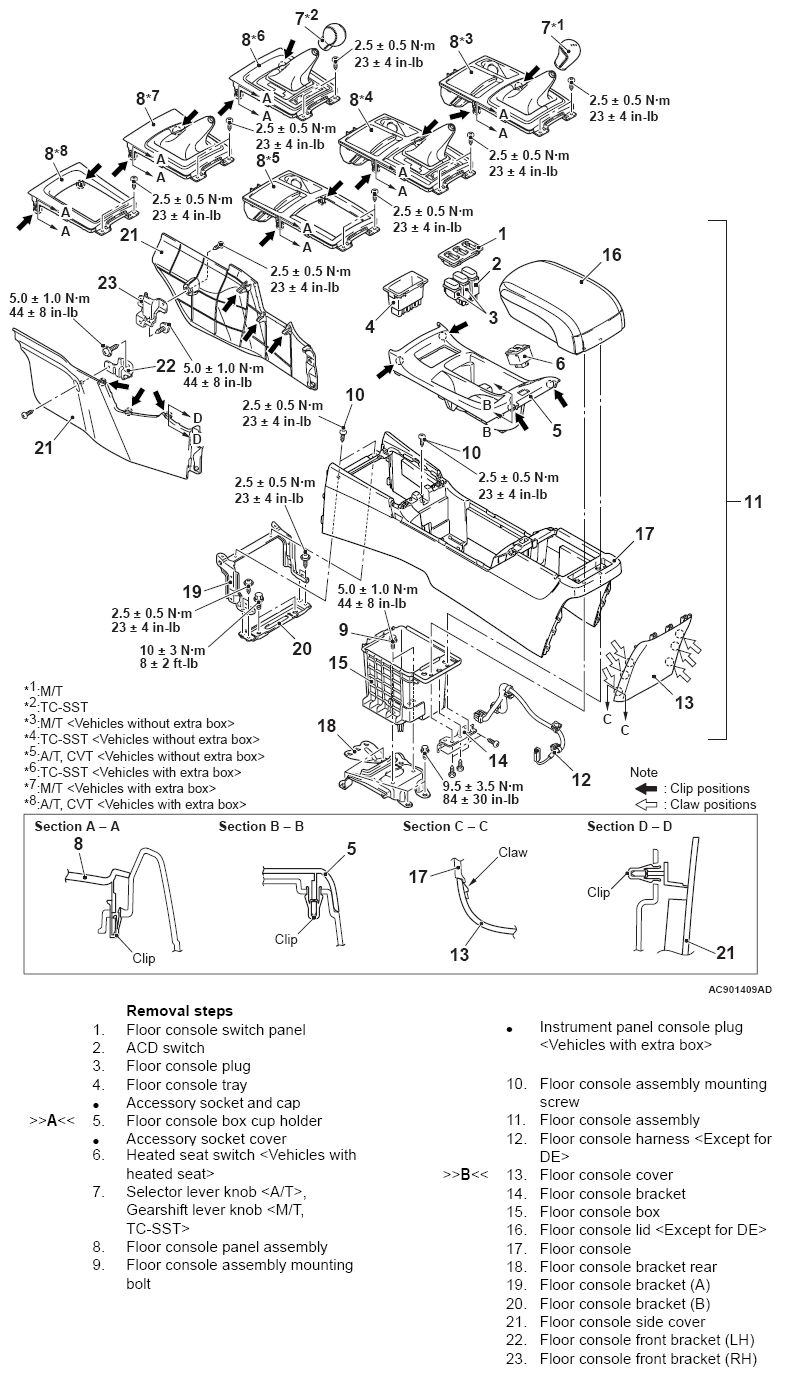

Fig 1: Removing/Installing Floor Console Assembly Components With Torque Specifications
G07033119Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
