Lancer ES, 4D Hatchback, Standard
›
Repair and Diagnosis
›
Steering
›
Power Steering - Except Lancer Evolution
›
Steering Column Shaft Assembly
›
Disassembly And Assembly
›
Notes
Disassembly And Assembly: Notes

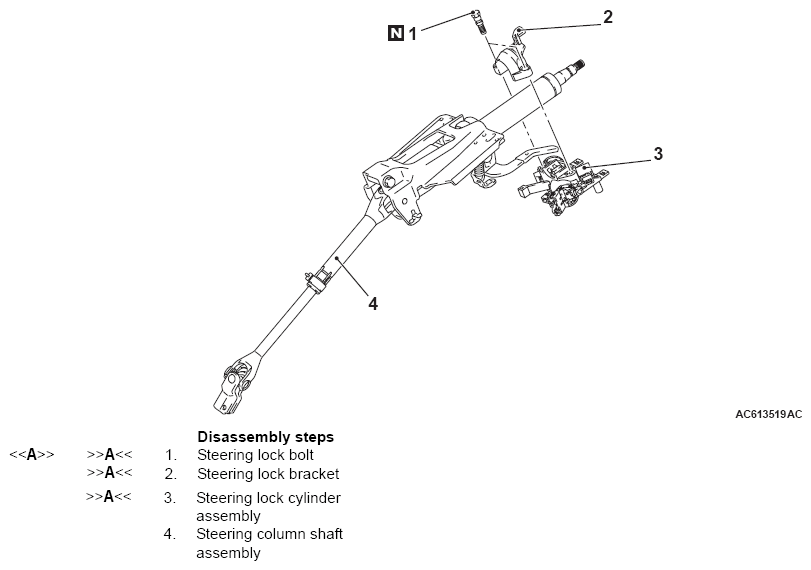

Fig 1: Disassembled View Of Steering Column Shaft Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
