Continuously Variable Transaxle Overhaul - Except Lancer Evolution
›
Forward Clutch
›
Disassembly And Assembly
›
Notes
Disassembly And Assembly: Notes

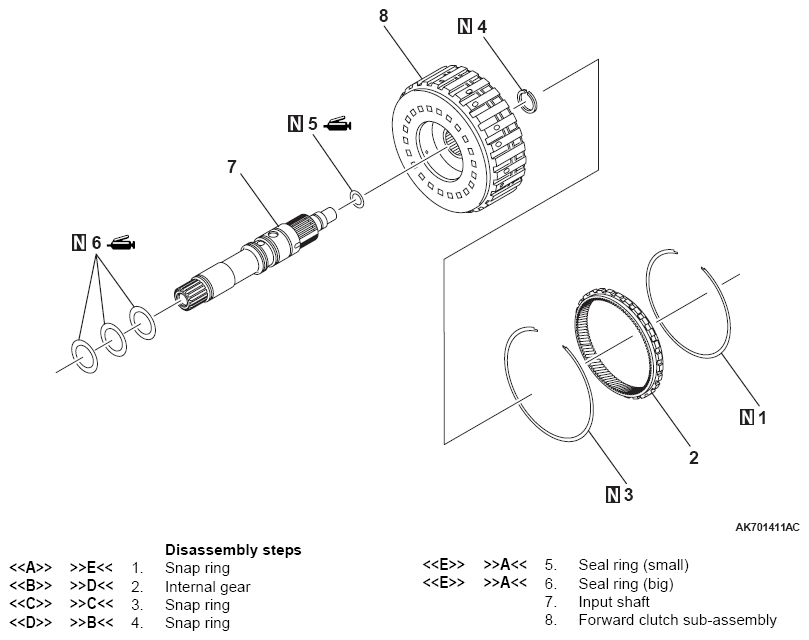

Fig 1: Identifying Forward Clutch Disassembly And Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
