Code No.U1007 Theft-alarm sensor LIN timeout: Notes

CAUTION: Before replacing the ECU, ensure that the communication circuit is normal.

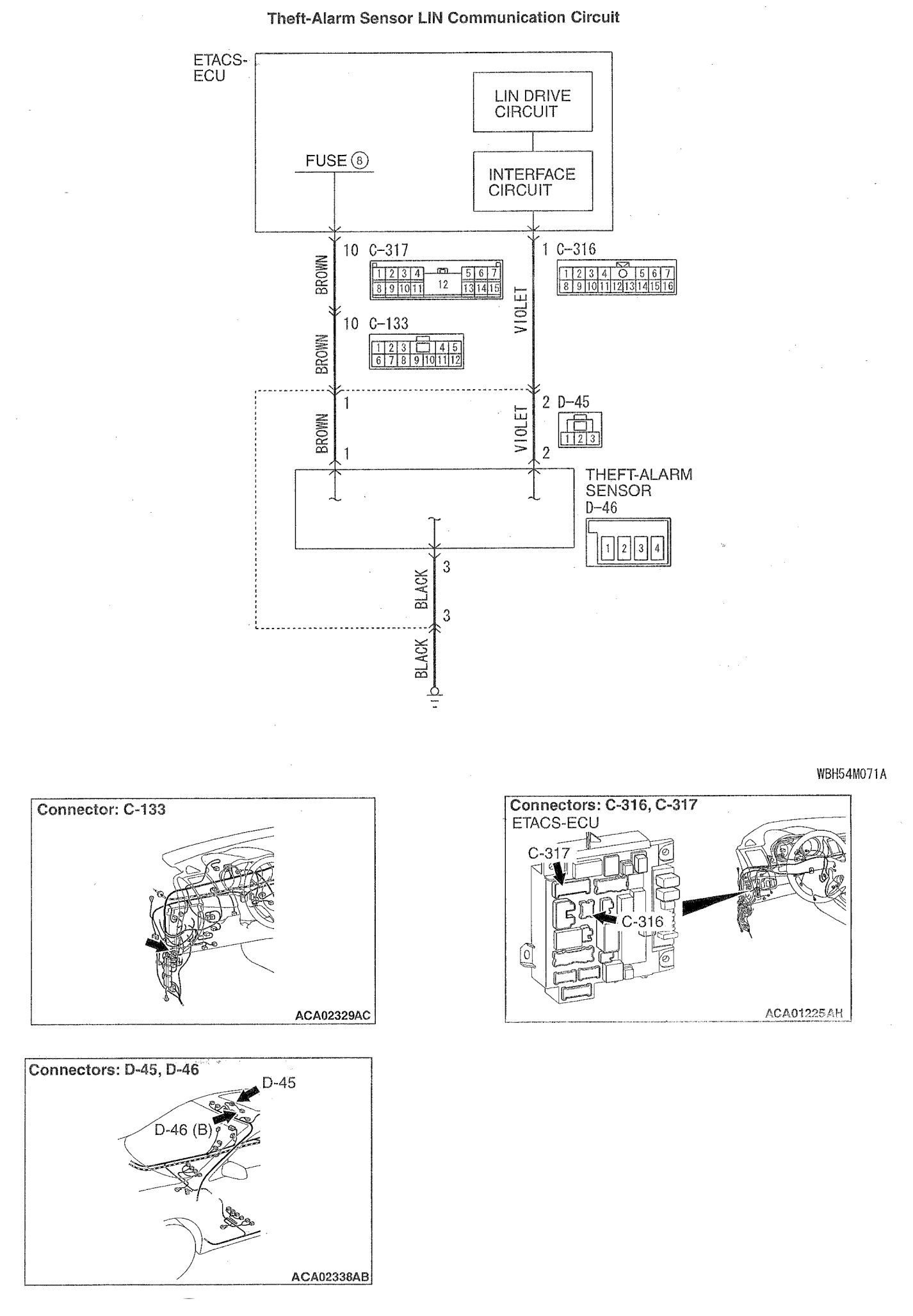

Fig 1: Theft-Alarm Sensor LIN Communication Circuit Diagram
G00505458Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
