DTC U1109: Column SW LIN timeout
›
Notes
DTC U1109: Column SW LIN timeout: Notes
CAUTION:
Before replacing the ECU, ensure that the communication circuit is normal.

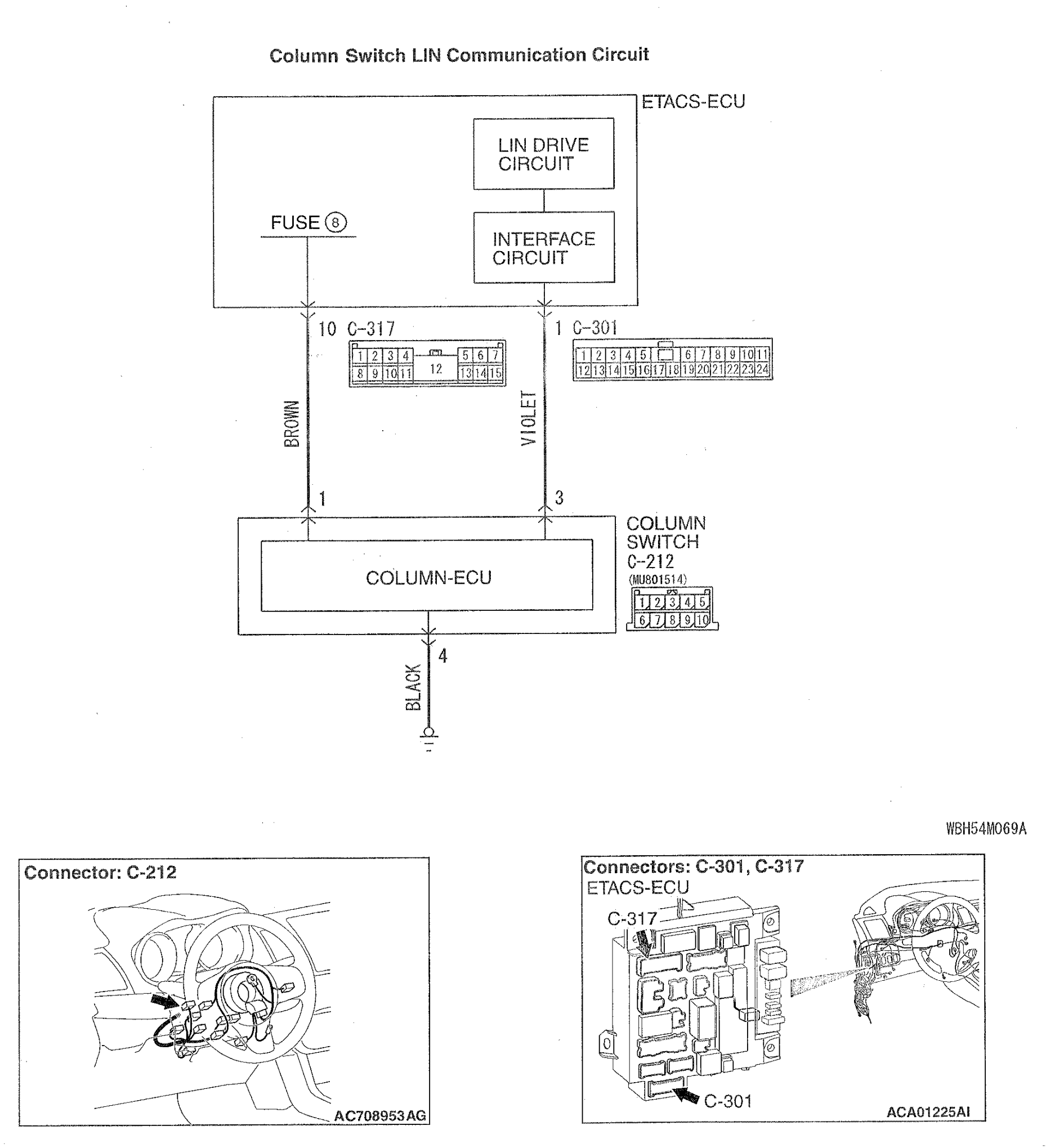

Fig 1: Column Switch LIN Circuit Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
