Power Plant Mount - Lancer Evolution
›
Transaxle Mounting
›
Removal And Installation
›
Notes
Removal And Installation: Notes

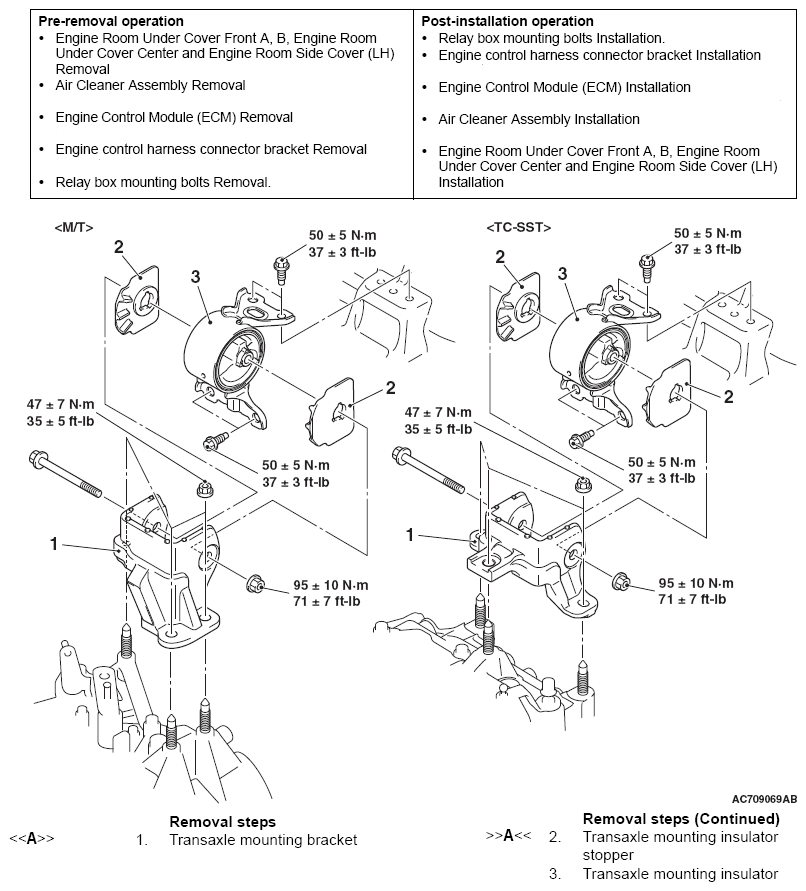

Fig 1: Transaxle Mounting Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
