Microphone Unit Removal And Installation
›
Notes
Microphone Unit Removal And Installation: Notes

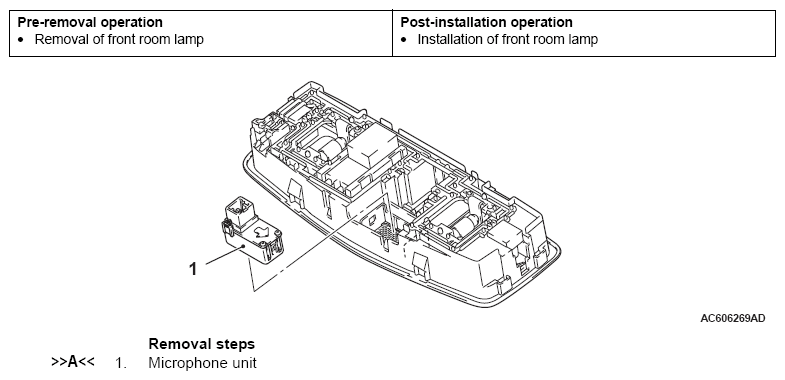

Fig 1: Identifying Microphone Unit Remove/Install Components
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
