Removal And Installation <3.8L Engine>
›
Notes
Removal And Installation <3.8L Engine>: Notes

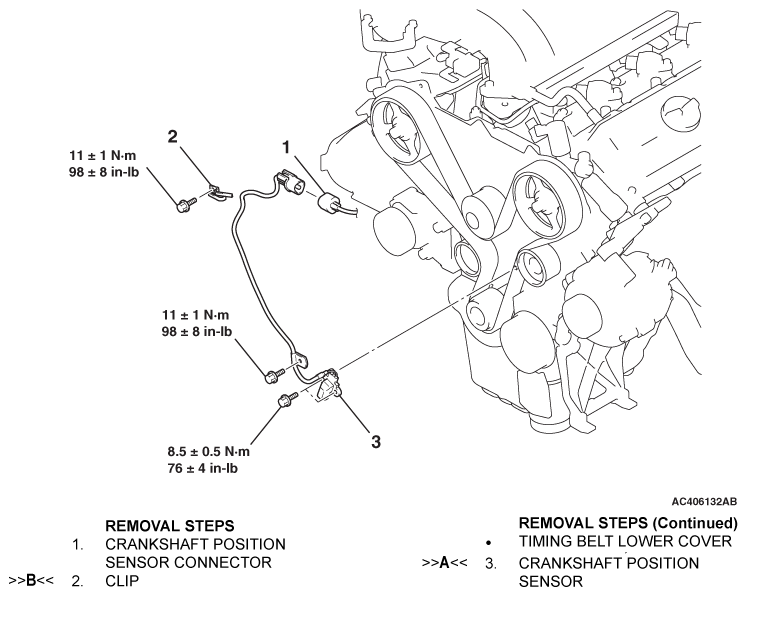

Fig 1: Removal/Installation Of Crankshaft Position Sensor With Torque Specifications (3.8L Engine)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
