Removal And Installation: Notes

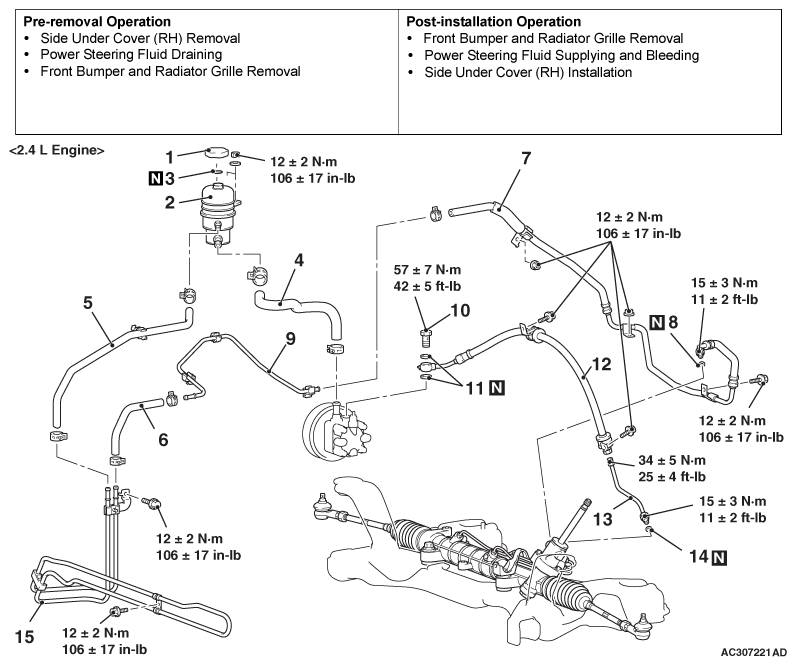

Fig 1: Power Steering Hoses Components With Torque Specification - 2.4L Engine
G06686273Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

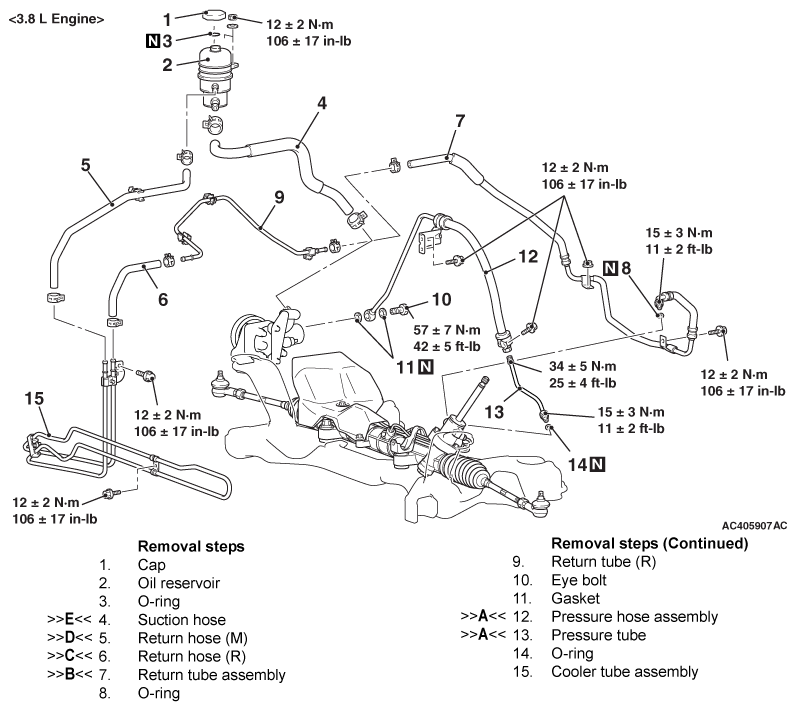

Fig 2: Power Steering Hoses Components With Torque Specification - 3.8L Engine
G06686274Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
