Removal And Installation: Notes

WARNING:

• Before removing the steering wheel assembly and driver's air bag module, refer to SERVICE PRECAUTIONS and AIR BAG MODULE AND CLOCK SPRING .
• After adjusting the steering angle, always perform calibration to make TCL/ASC-ECU learn the neutral position of the steering wheel sensor. (Refer to STEERING WHEEL SENSOR CALIBRATION ).

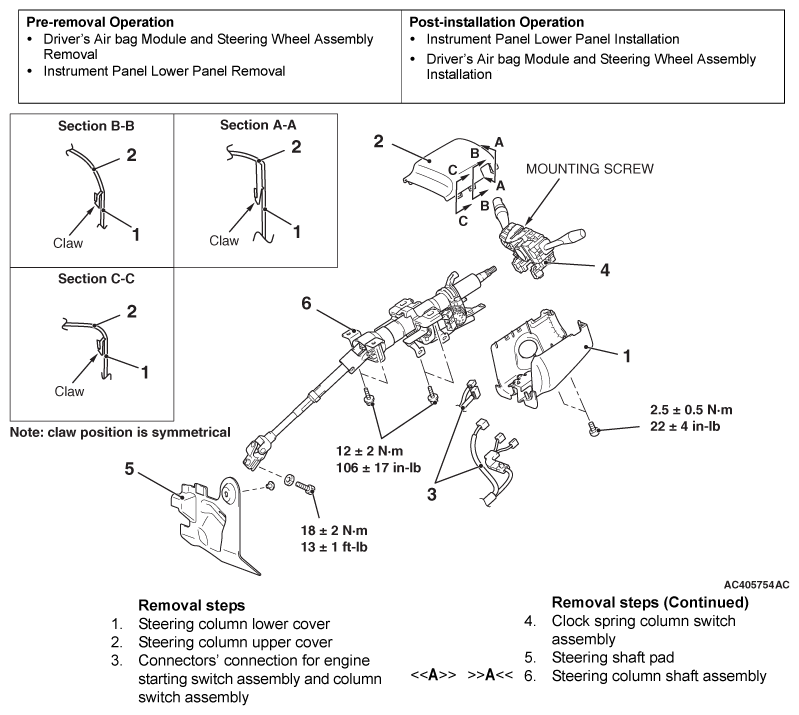

Fig 1: Steering Shaft Components With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
