Dash Panel
Dash Panel

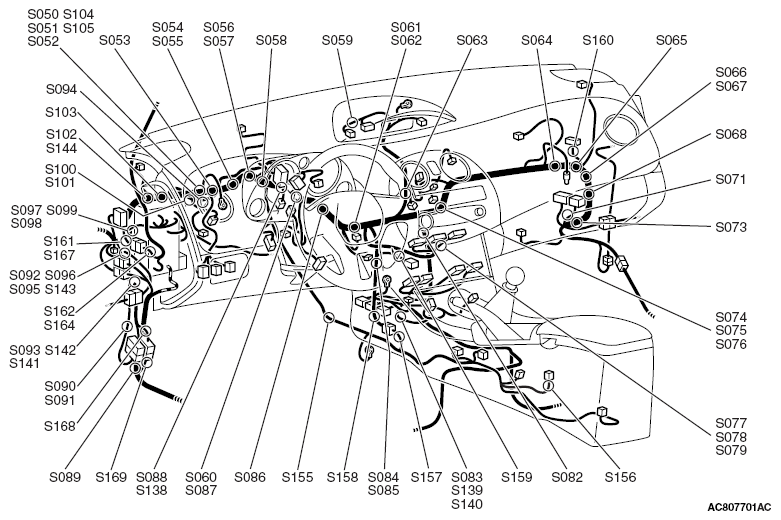

Fig 1: Identifying Splice Locations - Dash Panel
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
