Disassembly And Assembly: Notes

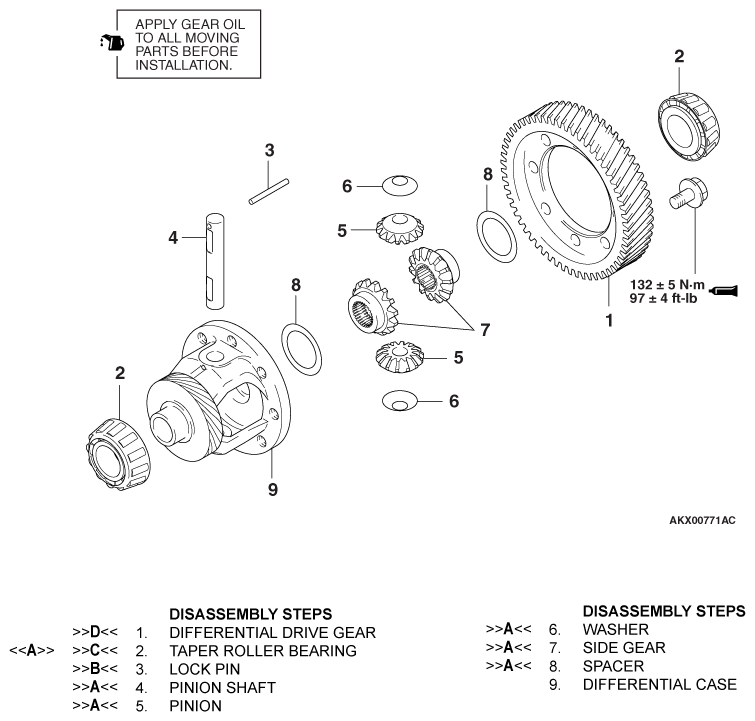

Fig 1: Disassembly/Assembly Of Differential Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MD998801: Bearing Remover
• MD998812: Installer Cap
• MD998819: Installer Adapter (40)
