Disassembly And Assembly: Notes

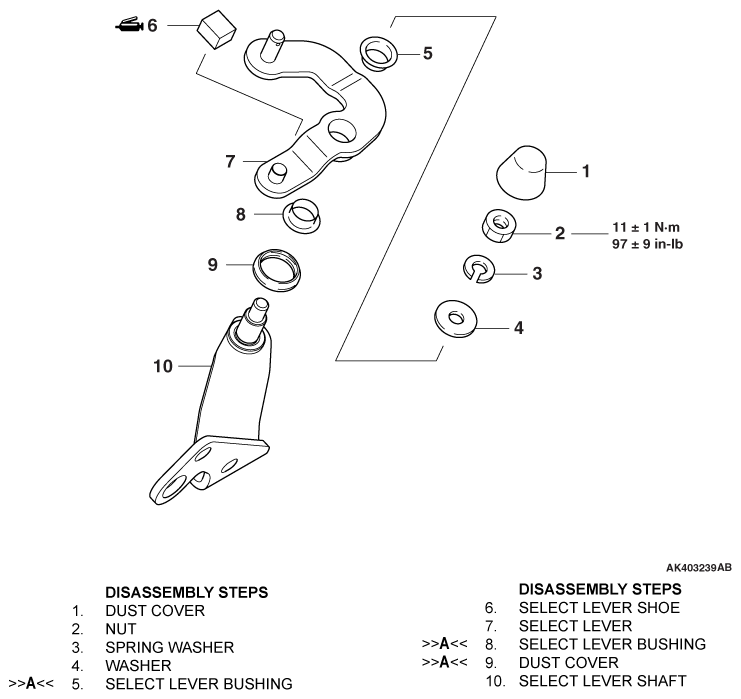

Fig 1: Disassembly/Assembly Of Select Lever Components With Torque Specifications
G06684630Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
