Disassembly And Assembly: Notes

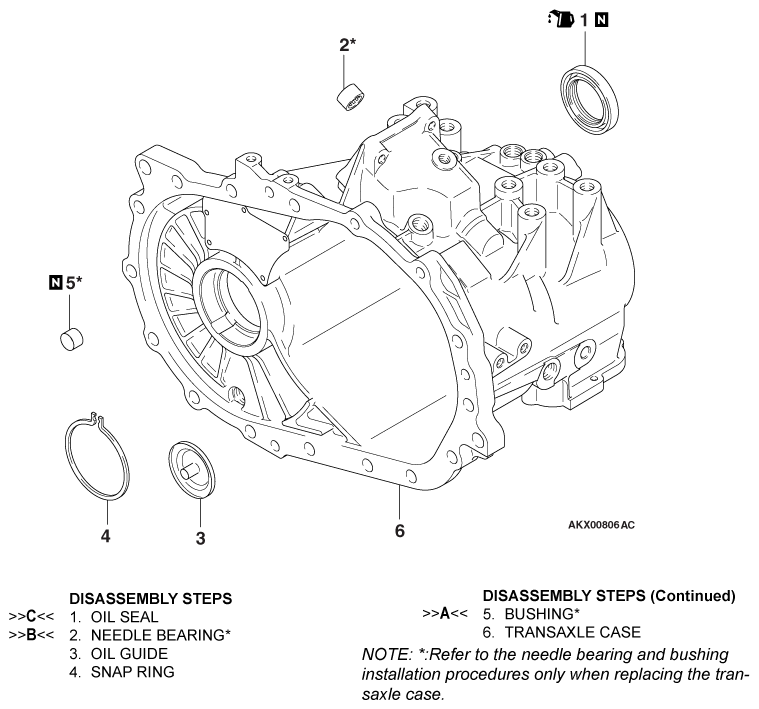

Fig 1: Disassembly/Assembly Of Transaxle Case Components

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: *: Refer to the needle bearing and bushing installation procedures only when replacing the transaxle case.

Required Special Tool:
