Disassembly And Assembly: Notes

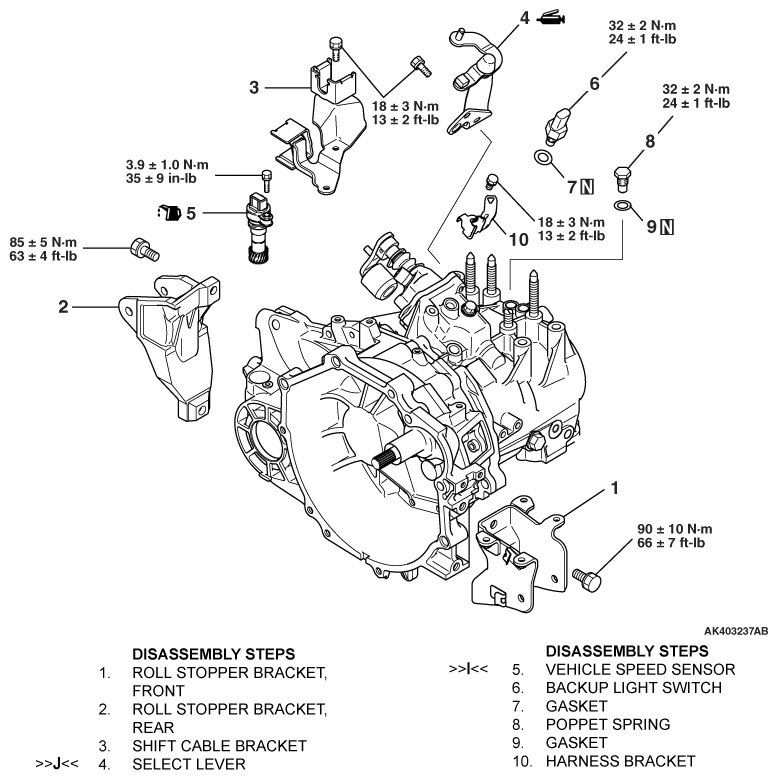

Fig 1: Disassembly/Assembly Of Transaxle Components With Torque Specifications (1 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

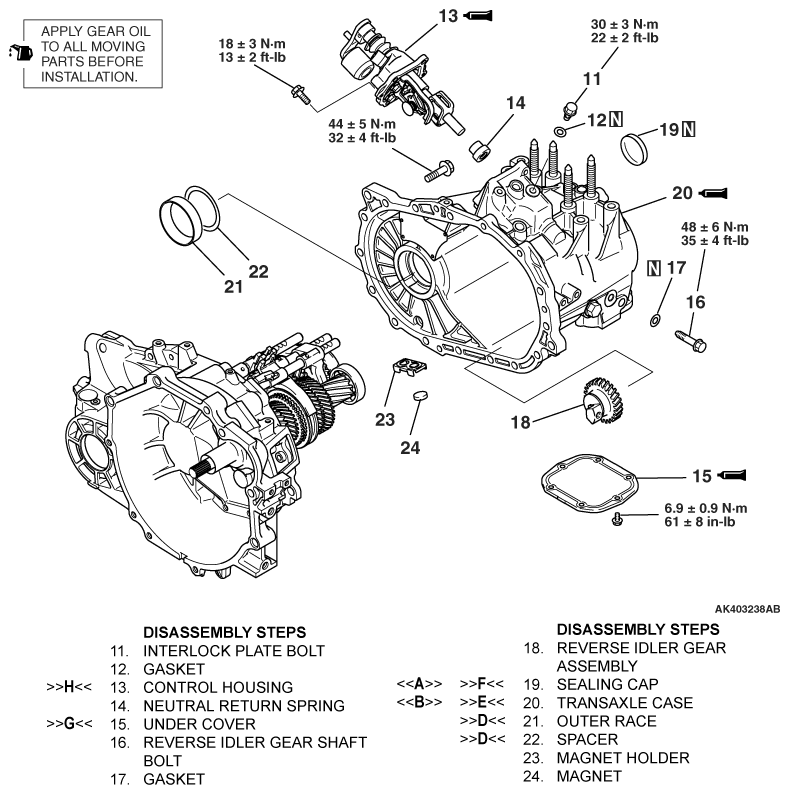

Fig 2: Disassembly/Assembly Of Transaxle Components With Torque Specifications (2 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

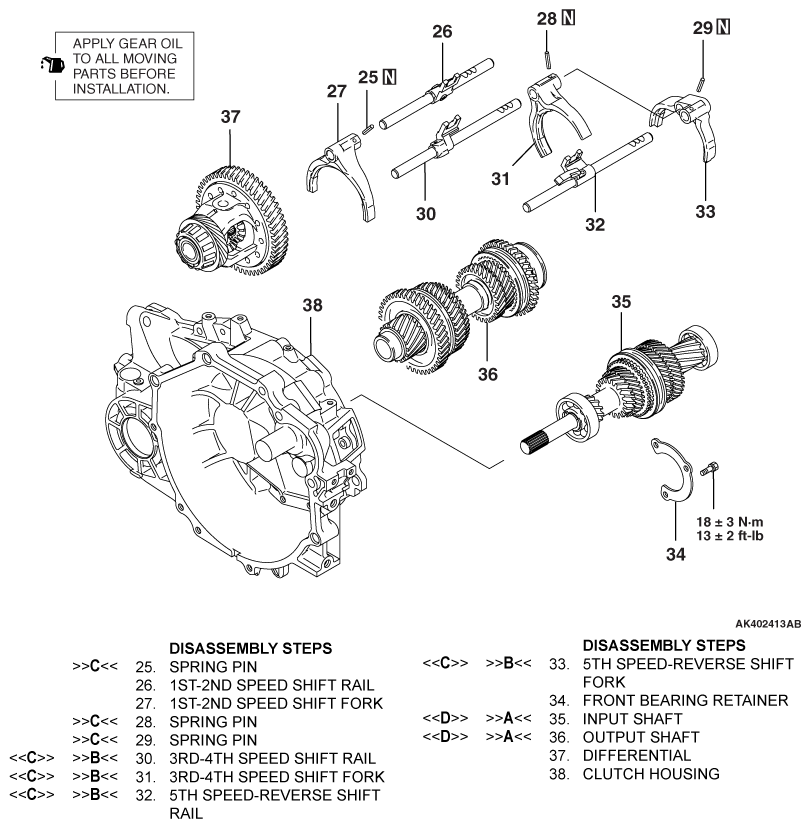

Fig 3: Disassembly/Assembly Of Transaxle Components With Torque Specifications (3 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
