Automatic Transaxle Overhaul - F5A5A
›
Direct Clutch
›
Disassembly And Assembly
›
Notes
Disassembly And Assembly: Notes

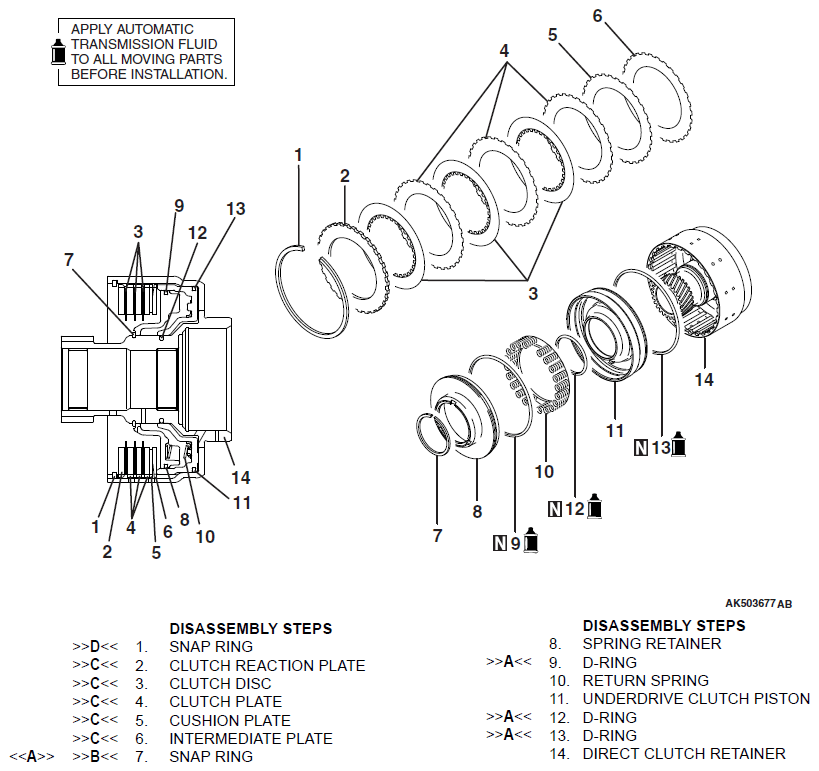

Fig 1: Disassembling View Of Direct Clutch
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Required Special Tools:
MB991630: Spring Compressor
MD998924: Spring compressor retainer
