Disassembly And Assembly: Notes

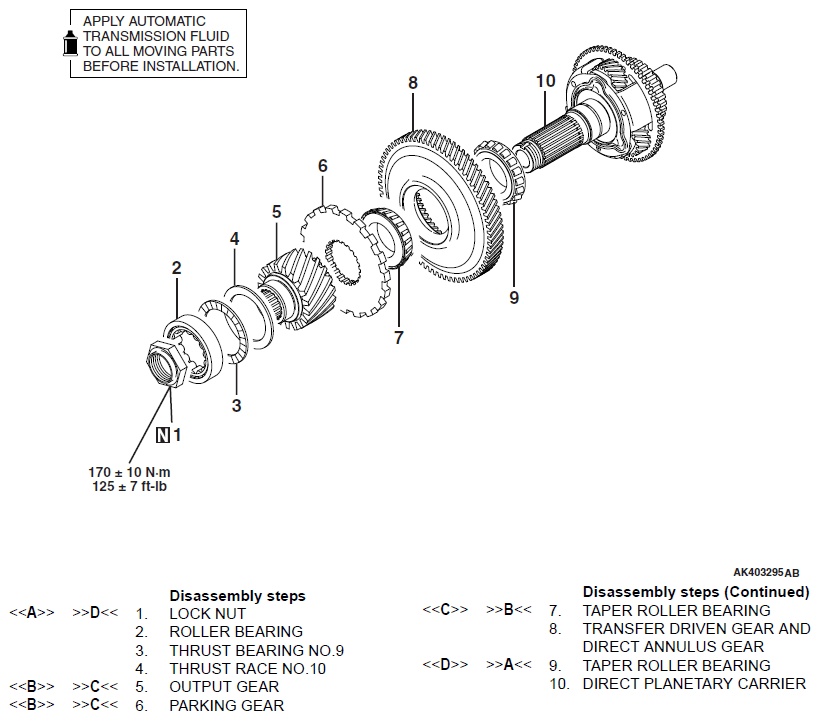

Fig 1: Disassembling View Of Direct Planetary Carrier With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MD998834: Special Spanner
• MD998917: Bearing remover
• MD998812: Installer Cap
• MD998813: Installer 100
• MD998824: Installer Adapter (50)
