Disassembly And Assembly: Notes

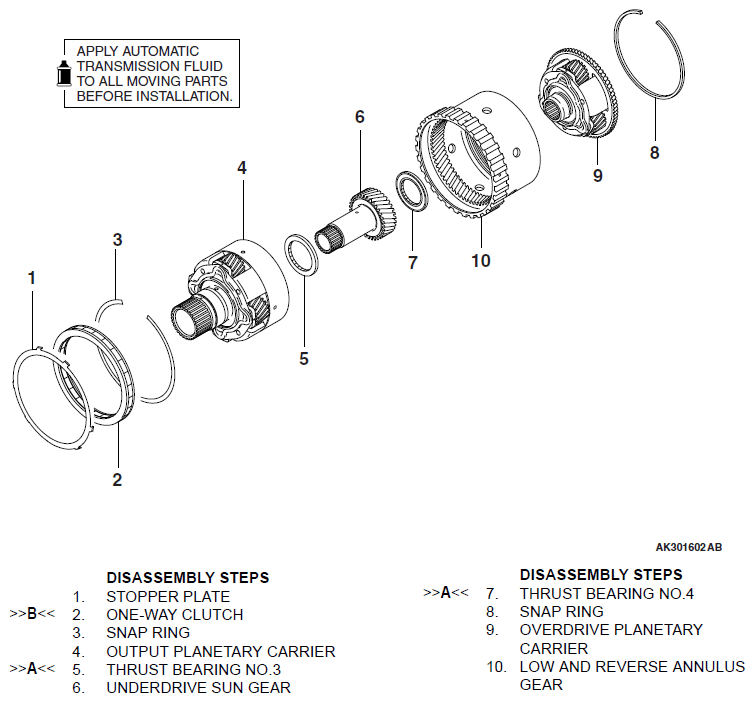

Fig 1: Disassembling View Of Planetary Gear
G06686038Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
