Disassembly And Assembly: Notes

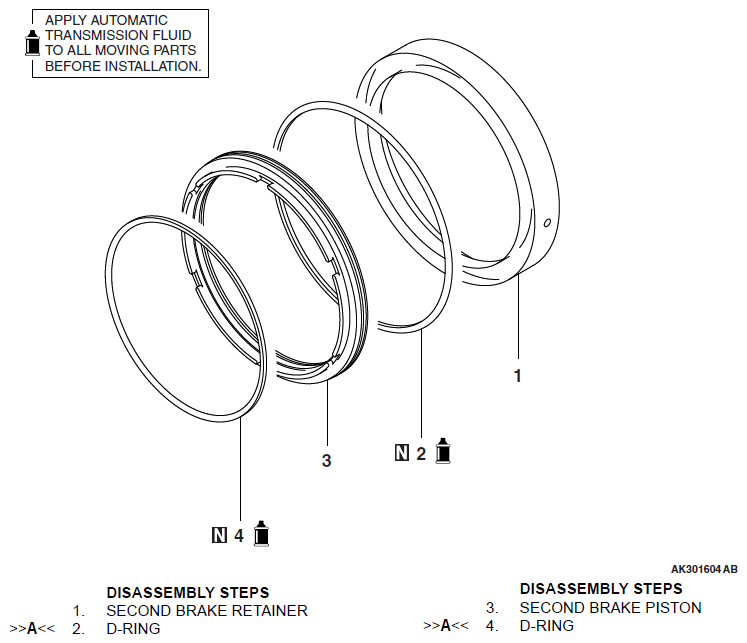

Fig 1: Disassembling View Of Second Brake

G06686042

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
