Disassembly And Assembly: Notes

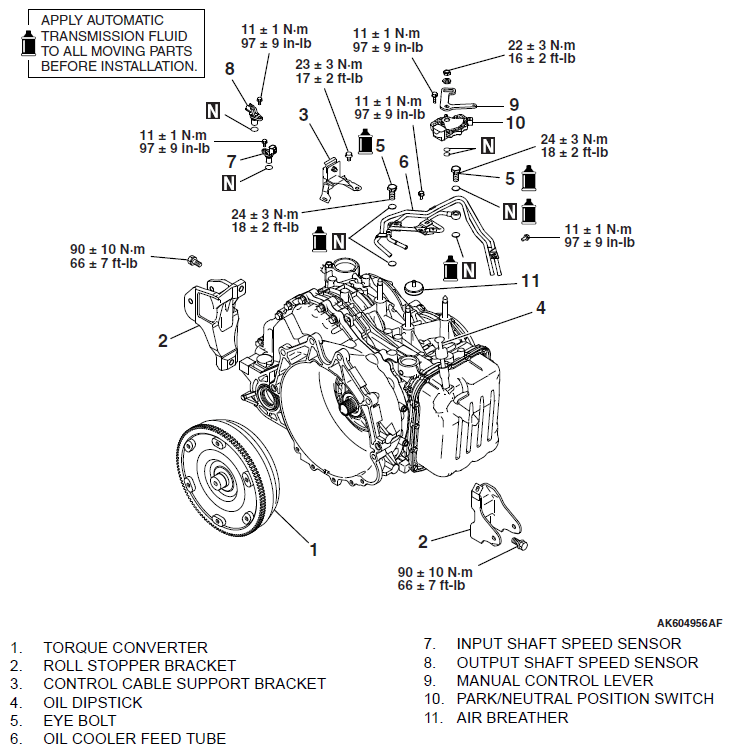

Fig 1: Transaxle Components With Torque Specification (1 Of 5)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

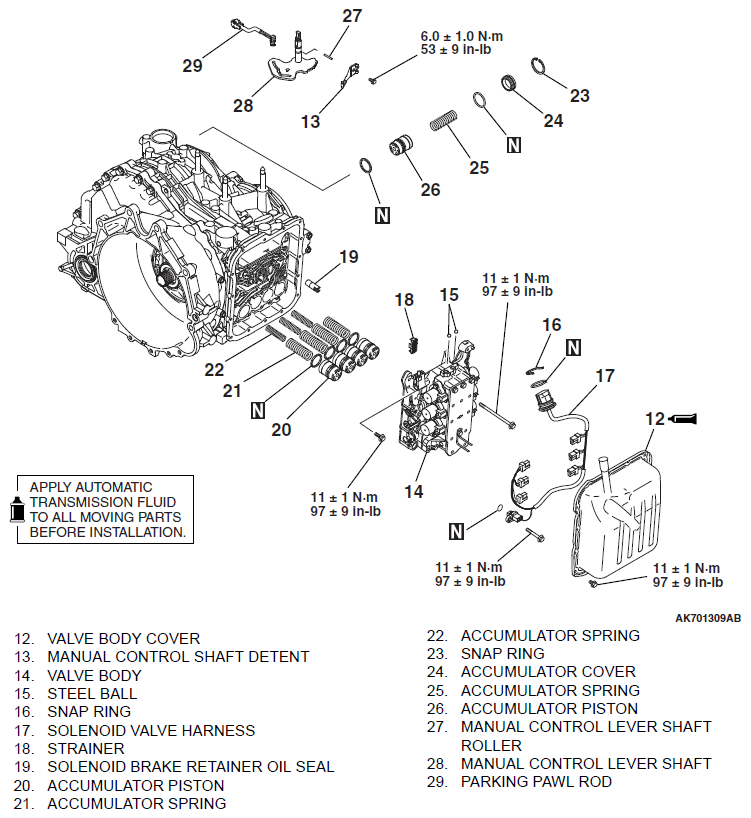

Fig 2: Transaxle Components With Torque Specification (2 Of 5)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

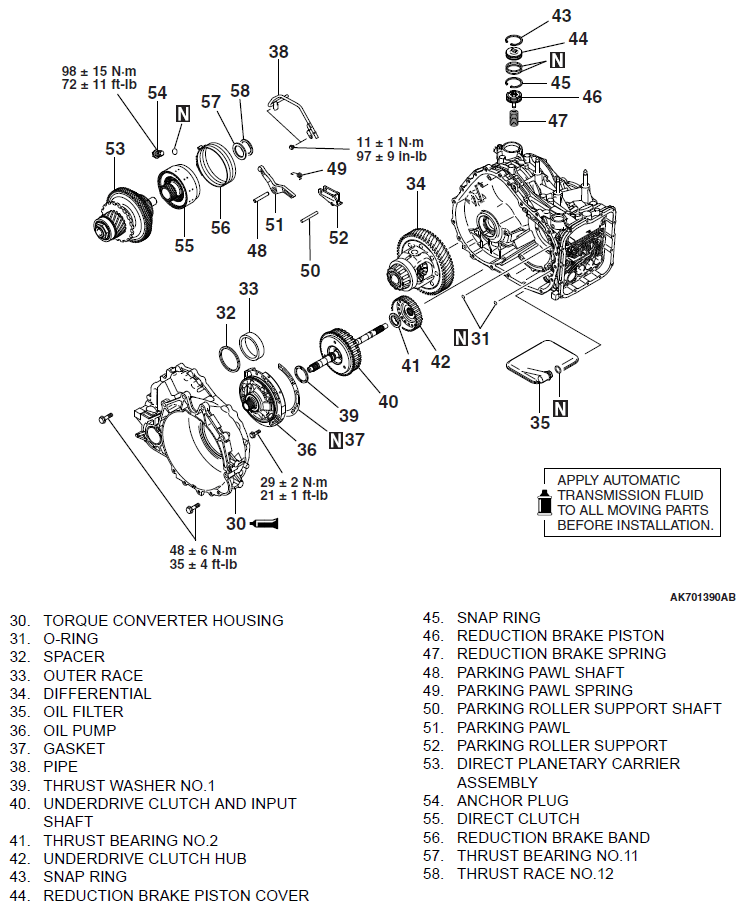

Fig 3: Transaxle Components With Torque Specification (3 Of 5)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

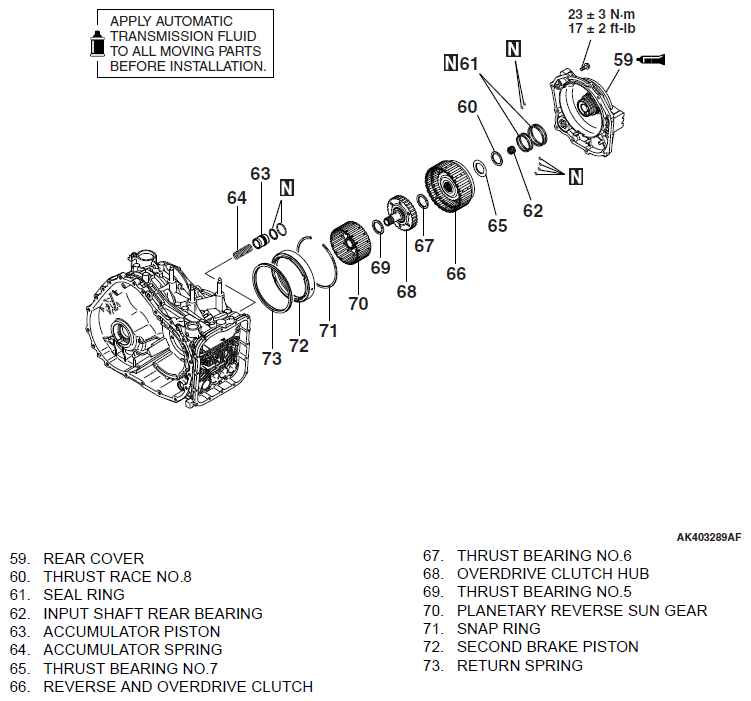

Fig 4: Transaxle Components With Torque Specification (4 Of 5)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

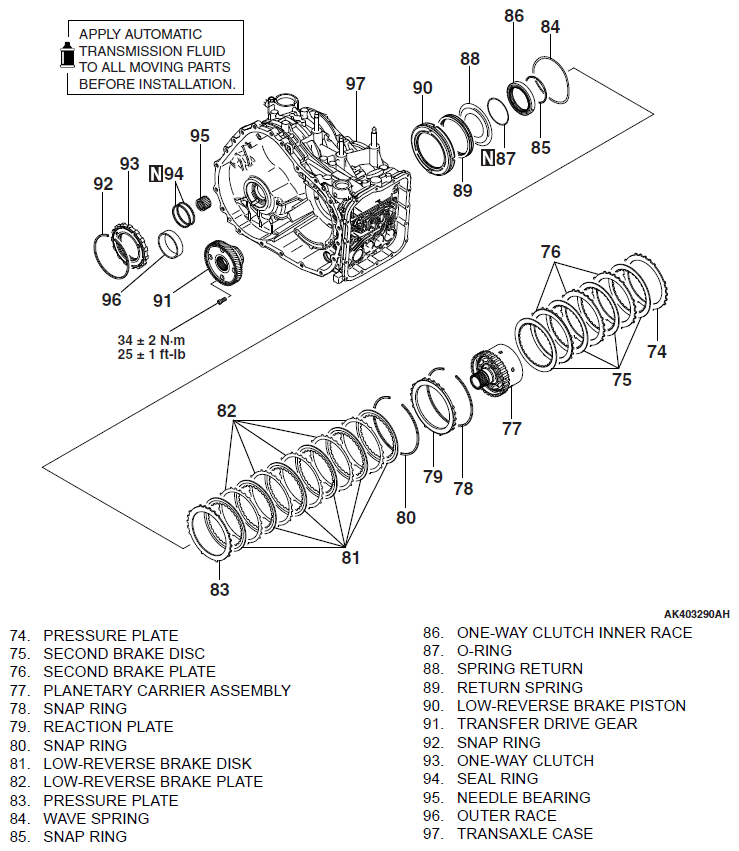

Fig 5: Transaxle Components With Torque Specification (5 Of 5)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
