Disassembly And Assembly: Notes

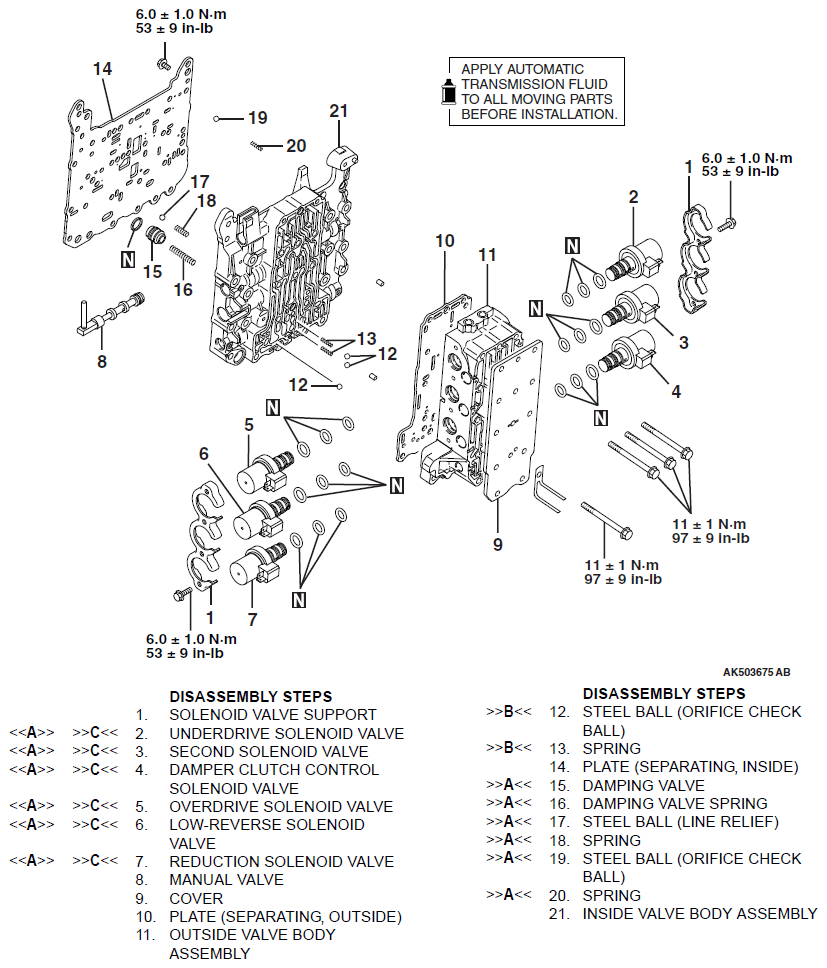

Fig 1: Disassembling View Of Valve Body With Torque Specifications (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

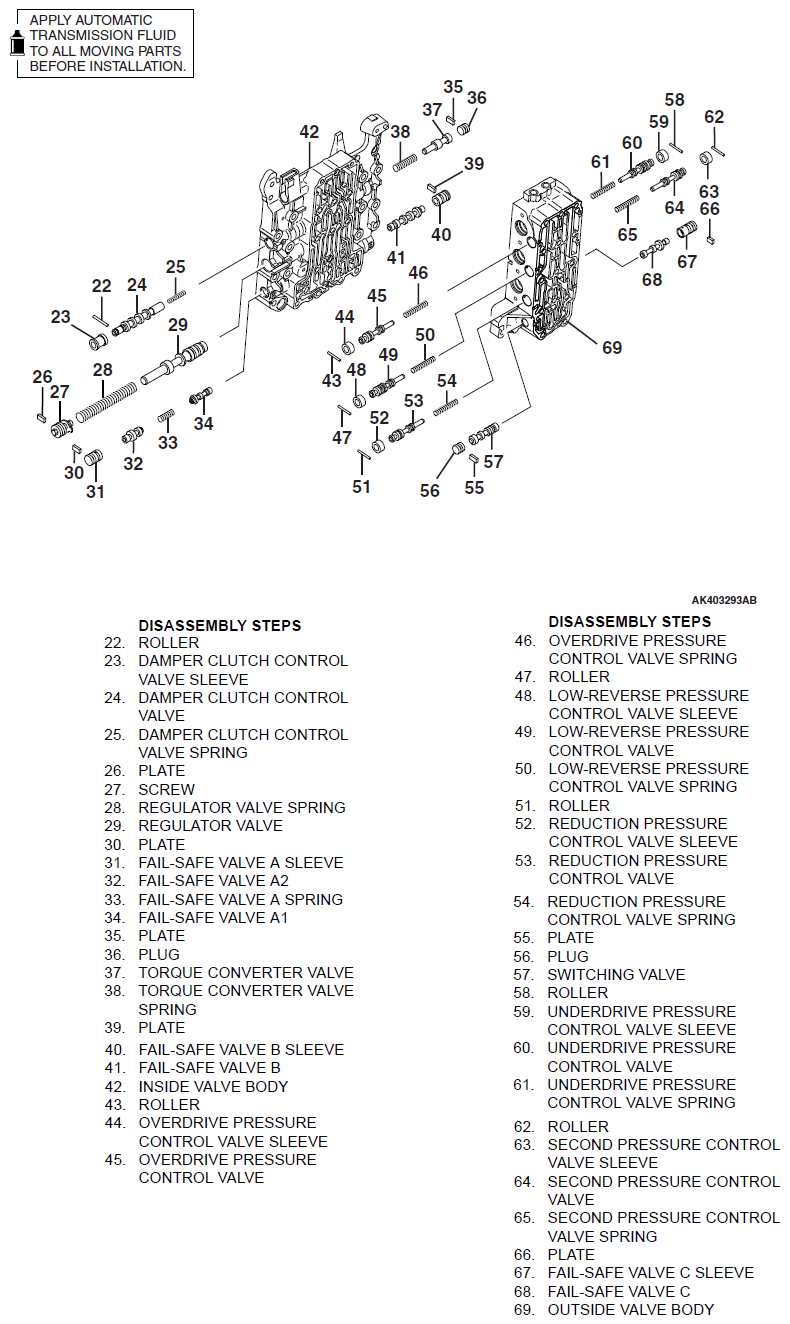

Fig 2: Disassembling View Of Valve Body (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
