Traction Control/Active Stability Control System
›
General Description
›
System Configuration Diagram
System Configuration Diagram

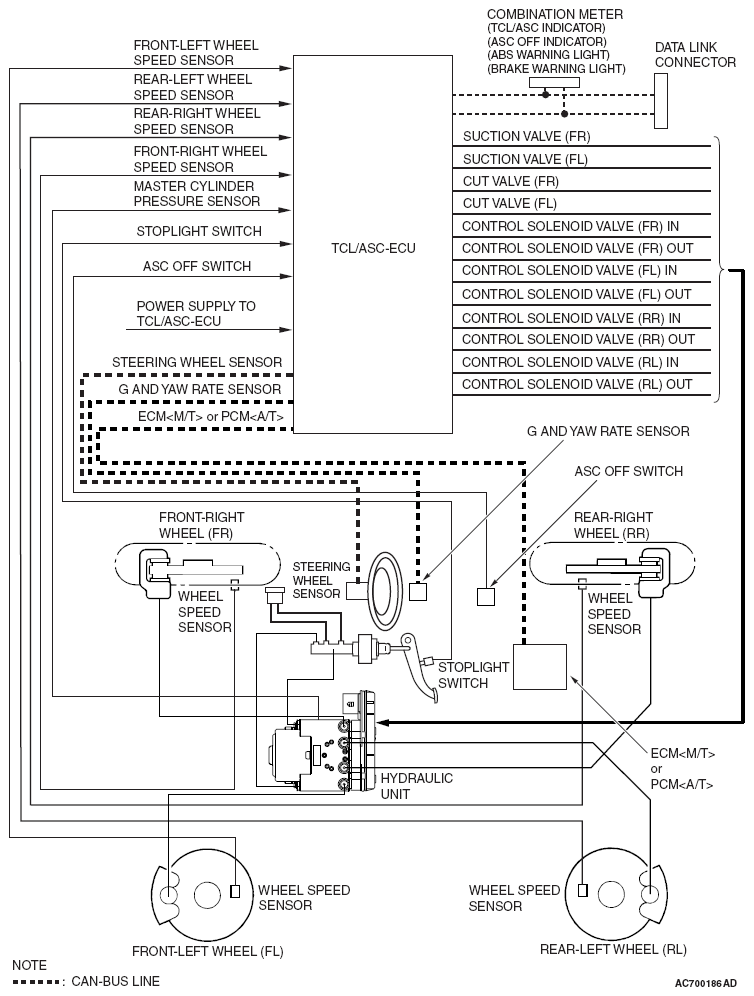

Fig 1: Traction Control/Active Stability Control System Configuration Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
