<2.4L Engine>
<2.4L Engine>

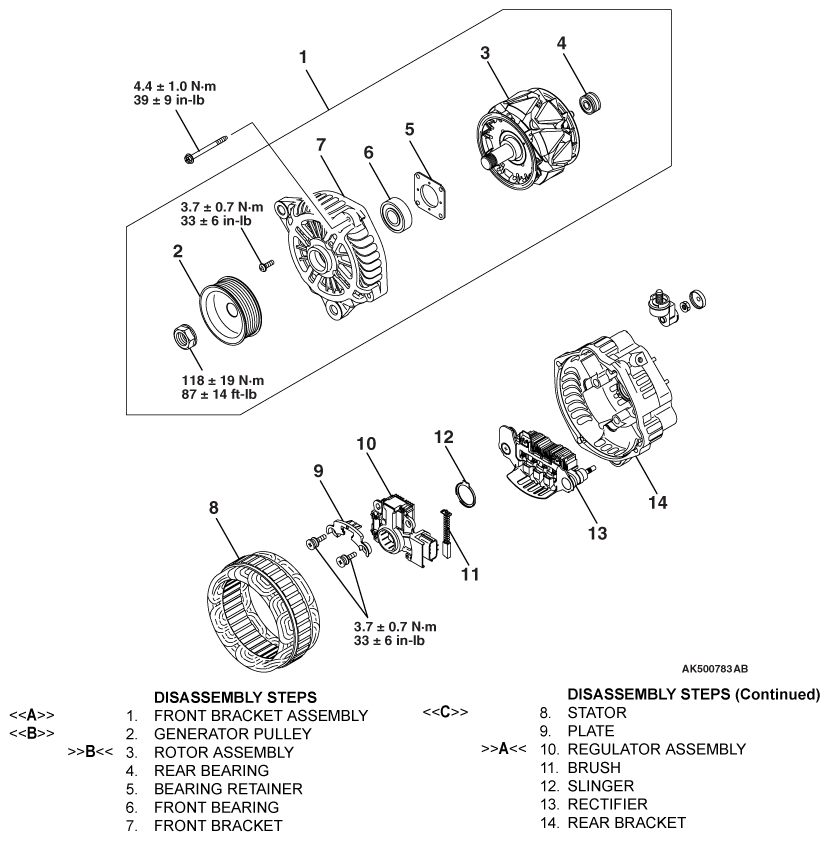

Fig 1: Generator Disassembly And Assembly With Torque Specifications - 2.4L Engine
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
