Special Tools

SPECIAL TOOLS REFERENCE CHART

TOOL TOOL NUMBER AND NAME SUPERSESSION APPLICATION
G05106141Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

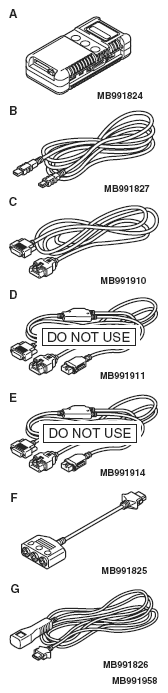

 MB991958
  1. MB991824
  2. MB991827
  3. MB991910
  4. MB991911
  5. MB991914
  6. MB991825
  7. MB991826

M.U.T.-III Sub Assembly
  1. Vehicle communication interface (V. C. I.)
  2. M.U.T.-III USB cable
  3. M.U.T.-III main harness A (Vehicles with CAN communication system)
  4. M.U.T.-III main harness B (Vehicles without CAN communication system)
  5. M.U.T.-III main harness C (for Chrysler models only)
  6. M.U.T.-III measurement adapter
  7. M.U.T.-III trigger harness
 MB991824-KIT
NOTE: G: MB991826 M.U.T.-III Trigger Harness is not necessary when pushing V. C. I. ENTER key.
CAUTION: For vehicles with CAN communication, use M.U.T.-III main harness A to send simulated vehicle speed. If you connect M.U.T.-III main harness B instead, the CAN communication does not function correctly.
  • Reading diagnostic trouble code
  • Estimated vehicle speed sent
G05105616Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB991223
  1. MB991219
  2. MB991220
  3. MB991221
  4. MB991222

Harness set


  1. Test harness
  2. LED harness
  3. LED harness adapter
  4. Probe
 General service tool (jumper) Making voltage and resistance measurements during troubleshooting
  1. Connect pin contact pressure inspection
  2. Power circuit inspection
  3. Power circuit inspection
  4. Commercial tester connection
G06690116Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB992006
Extra fine probe		 General service tool Making voltage and resistance measurement during troubleshooting
