FixVault
Home
›
Mitsubishi
›
2012
›
Eclipse SE
›
Repair and Diagnosis
›
Electrical
›
Starter
›
Starting System
›
Starter Motor Assembly
›
Disassembly And Assembly
›
Notes
Disassembly And Assembly: Notes

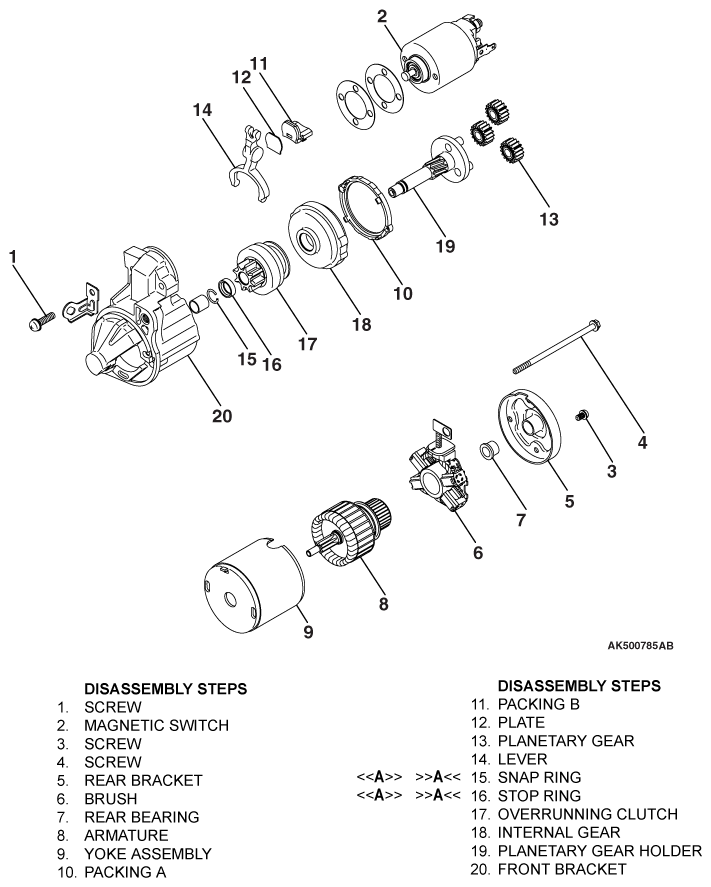

Fig 1: Disassembling And Assembling Starter Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
