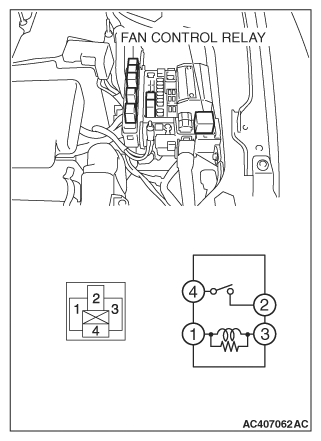

Fan Control Relay Continuity Check
FAN CONTROL RELAY CONTINUITY CHECK
| BATTERY VOLTAGE |
TERMINAL NO. TO BE CONNECTED TO TESTER |
CONTINUITY TEST RESULTS |
| Not applied |
4 - 2 |
Open circuit |
Connect terminal No. 3 and battery (-) terminal.
Connect terminal No. 1 and battery (+) terminal. |
4 - 2 |
Continuity (Less than 2 ohms) |
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
