FixVault
Home
›
Mitsubishi
›
2012
›
Eclipse SE
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Emission Control System
›
Exhaust Gas RECIRCULATION (EGR) System
›
Removal And Installation <2.4L Engine>
›
Notes
Removal And Installation <2.4L Engine>: Notes

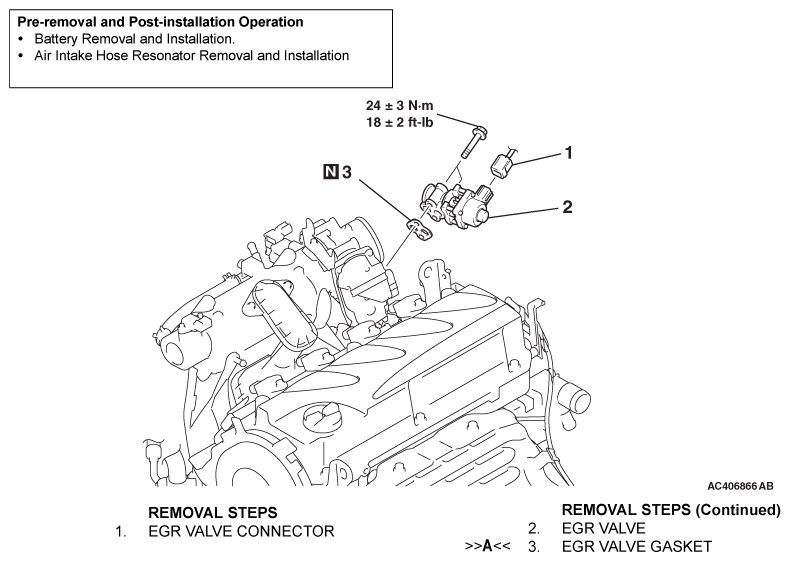

Fig 1: EGR Valve Removal And Installation With Torque Specifications (2.4L Engine)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
