Disassembly And Assembly: Notes

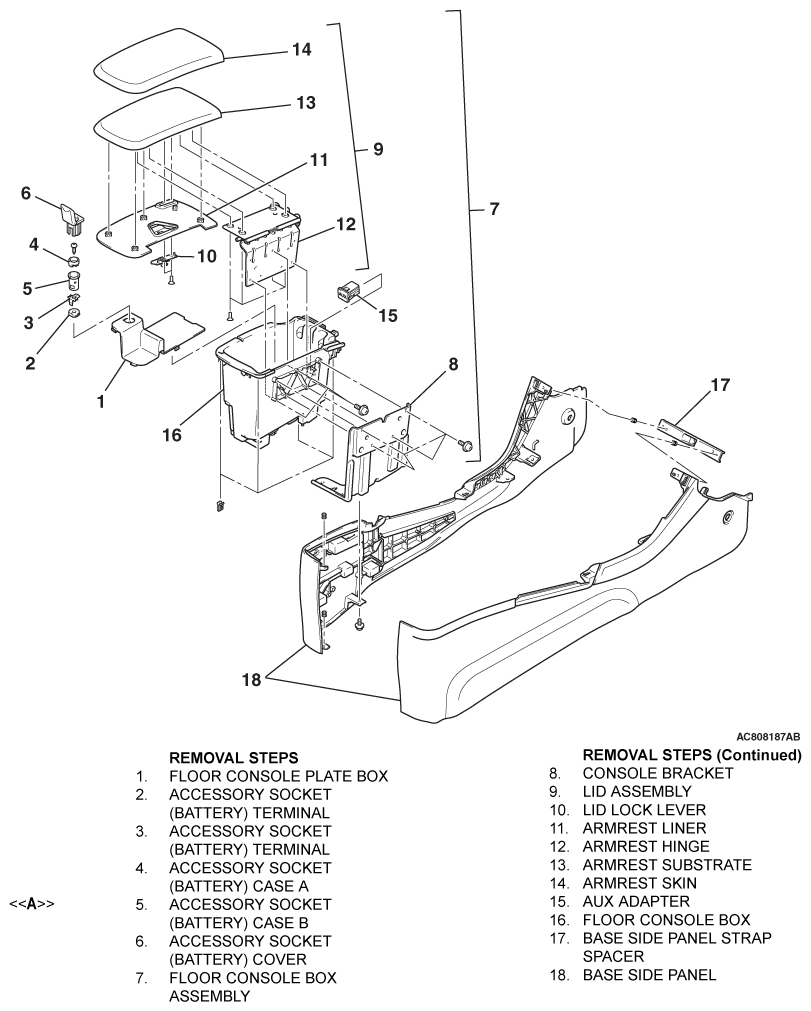

Fig 1: Identifying Floor Console Plate Box, Accessory Socket And Floor Console Box Components
G06686739Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
