Disassembly And Assembly
Disassembly And Assembly

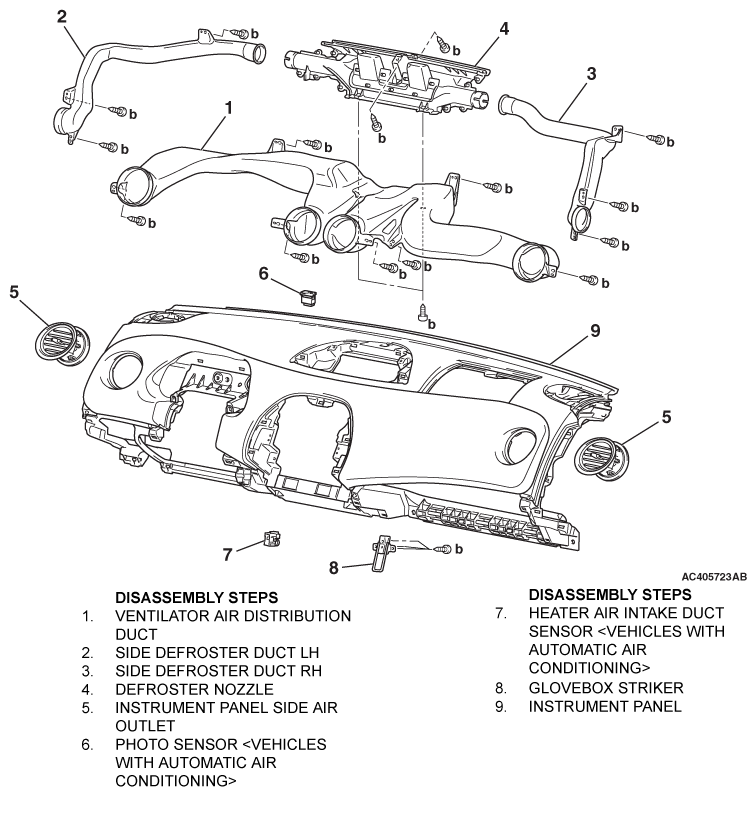

Fig 1: Identifying Instrument Panel, Heater Air Intake Duct Sensor And Glovebox Striker
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
