Home › Mitsubishi › 2012 › Eclipse SE › Repair and Diagnosis › Steering › Power Steering System › Power Steering Oil Pump Assembly › Removal And Installation <3.8L Engine> › Notes

Removal And Installation <3.8L Engine>: Notes

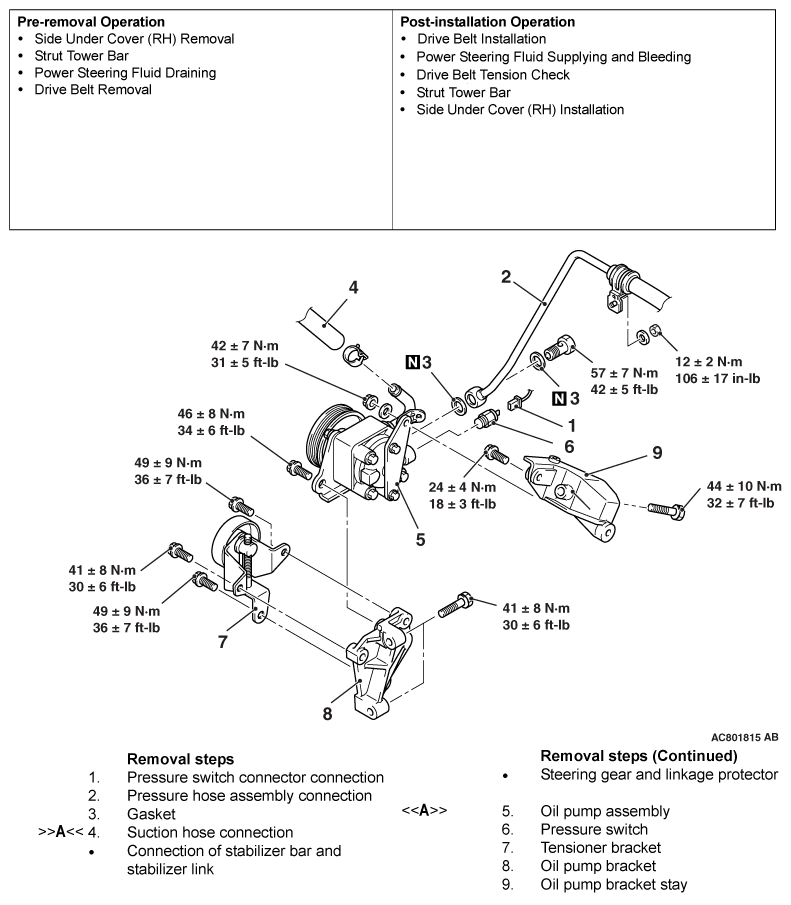

Fig 1: Power Steering Oil Pump Assembly Components With Torque Specification
G06686270Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
