Disassembly And Assembly: Disassembly

CAUTION:

• Because the automatic transaxle is manufactured from high-precision parts, care must be taken not to scratch or damage these parts during disassembly and assembly.
• Work on a rubber mat and keep it clean at all times.
• Do not wear any cloth gloves and do not use any shop towels during disassembly. Use only nylon cloth, paper towels or any other lint-free material.
• Parts which have been disassembled should all be cleaned. Metal parts can be cleaned with normal detergent, but they should be dried completely using compressed air.
• Clutch discs, plastic thrust plates and rubber parts should be cleaned with automatic transmission fluid (ATF).
• If the transaxle body has been damaged, disassemble and clean the cooler system.

1. Remove the torque converter.
2. Use a dial gauge to measure the input shaft end play.
3. Remove each bracket.
4. Remove the dipstick.
5. Remove the eye bolt, gaskets and the oil cooler feed tube.
   Fig 1: Measuring Input Shaft End Play Using Dial Gauge

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
6. Remove the air breather by inserting a screwdriver into the air breather and prying it up.
   Fig 2: Removing Air Breather

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
7. Remove the input shaft speed sensor and output shaft speed sensor.
   Fig 3: Removing Input Shaft Speed Sensor

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
   CAUTION: The manual control lever tightening nut must be removed before removing the valve body. If the valve body is removed before the nut, the park/neutral position switch will be damaged.
8. Loosen the manual control lever tightening nut, and then remove the manual control lever and the park/neutral position switch.
   Fig 4: Identifying Park/Neutral Position Switch And Manual Control Lever

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
9. Remove the valve body cover.
   Fig 5: Identifying Valve Body Cover

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
10. Remove the manual control shaft detent.

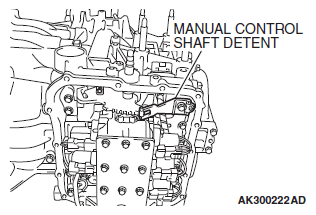

    Fig 6: Identifying Manual Control Shaft Detent

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
11. Disconnect the solenoid valve harness from the valve body by disconnecting the fluid temperature sensor and all the connectors.
    Fig 7: Identifying Fluid Temperature Sensor

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    CAUTION:

    • Make sure that the manual control lever and the park/neutral position switch are removed. See step  8.
    • Do not remove the bolts (four pieces) shown in the illustration.
12. Remove the valve body mounting bolts (twenty seven pieces).
    Fig 8: Locating Valve Body Mounting Bolts

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    CAUTION: Do not lose the two steel balls.
13. Remove the valve body and the steel balls (two pieces).
    Fig 9: Removing Steel Balls

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
14. Remove the snap ring from the connector. Push the connector into the transaxle case and remove the solenoid valve harness.
    Fig 10: Removing Snap Ring

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
15. Remove the strainer and the second brake retainer oil seal.
    Fig 11: Removing Strainer

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
16. Remove each accumulator piston and spring.
    NUMBER REFERENCE



    NUMBER	NAME
    1	For low-reverse brake
    2	For underdrive clutch
    3	For second brake
    4	For overdrive clutch

    Fig 12: Removing Accumulator Piston

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
17. Remove the manual control lever shaft roller.
18. Remove the manual control lever shaft and the parking pawl rod.
    Fig 13: Removing Manual Control Lever Shaft Roller

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
19. Remove the torque converter housing mounting bolts (eighteen pieces), and then remove the torque converter housing.
20. Remove the differential bearing outer race and spacer from the torque converter housing.
    Fig 14: Removing Mounting Bolts

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
21. Remove the O-rings (two pieces).
    Fig 15: Removing Differential Bearing

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
22. Remove the differential.
    Fig 16: Identifying Differential

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
23. Remove the oil filter.
    Fig 17: Removing Oil Filter

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
24. Remove the oil pump mounting bolts (six pieces).
    Fig 18: Identifying Oil Pump Mounting

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
25. Install special tool MD998333 in the position shown in the illustration.
26. Turn special tool MD998333 to remove the oil pump.
27. Remove the oil pump gasket.
    Fig 19: Removing Oil Pump And Crushed Solders

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
28. Remove thrust washer number 1.
    Fig 20: Removing Thrust Washer

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
29. Holding the input shaft, remove the underdrive clutch and input shaft.
    Fig 21: Removing Input Shaft

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
30. Remove thrust bearing number 2.
    Fig 22: Removing Thrust Bearing

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
31. Remove the underdrive clutch hub.
    Fig 23: Removing Underdrive Clutch Hub

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
32. Remove the parking pawl shaft, and then remove the spacer and spring.
    Fig 24: Removing Parking Pawl Shaft

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
33. Remove the parking roller support shafts (two pieces), and then remove the parking pawl and parking roller support.
    Fig 25: Removing Parking Roller Support Shafts

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
34. Remove the rear cover and input shaft rear bearing.
35. Remove thrust race number 8.
36. Remove the seal rings (four pieces).
    Fig 26: Installing Rear Cover

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
37. Remove the O-rings (three pieces).
    Fig 27: Installing O-Rings

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
38. Remove the reverse and overdrive clutch and thrust bearing number 7.
    Fig 28: Removing Thrust Bearing

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
39. Remove overdrive clutch hub and thrust bearing number 6.
    Fig 29: Removing Overdrive Clutch Hub

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
40. Remove thrust bearing number 5.
    Fig 30: Removing Thrust Bearing

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
41. Remove the planetary reverse sun gear.
    Fig 31: Removing Planetary Reverse Sun Gear

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
42. Remove the snap ring.
    Fig 32: Removing Snap Ring

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
43. Remove the second brake piston and the return spring.
    Fig 33: Removing Second Brake Piston And Return Spring

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
44. Remove the brake plates (two pieces), brake discs (three pieces) and pressure plate.
    Fig 34: Removing Brake Plates, Brake Disc And Pressure Plate

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
45. Remove the planetary carrier assembly.
    Fig 35: Removing Planetary Carrier Assembly

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
46. Remove the snap ring.
    Fig 36: Removing Snap Ring

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
47. Remove the reaction plate and the brake disc.
    Fig 37: Removing Reaction Plate

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
48. Remove the snap ring.
    Fig 38: Removing Snap Ring

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
49. Remove the brake plates (five pieces), brake discs (six pieces) and pressure plate.
    NOTE: *Includes the brake discs removed in step 47.
    Fig 39: Removing Brake Plates

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
50. Remove the wave spring.
    Fig 40: Removing Wave Spring

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
51. Remove the one-way clutch inner race and low-reverse brake piston as follows:
    1. Using special tools MD998903 and MD998924, compress the one-way clutch inner race.
    2. Remove the snap ring.
    3. Remove the special tools.
    4. Remove the one-way clutch inner race, O-ring, spring retainer, return spring and low-reverse brake piston.
    Fig 41: Removing One-Way Clutch Inner Race

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
52. Remove the transfer drive gear bearing mounting bolts (three or four pieces). Then, turn the gear 1/8 turn (45 degrees) and remove the remaining bolts.

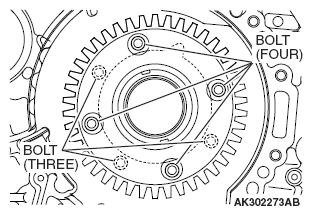

    Fig 42: Identifying Transfer Drive Gear Bearing Mounting Bolts

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
53. Remove the transfer drive gear.
    Fig 43: Removing Transfer Drive Gear

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
54. Remove the cap by inserting a screwdriver into the center of the cap and prying it up.
    Fig 44: Removing Cap Using Inserting Screwdriver

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
55. Using a chisel, straighten the staked portions from the output shaft lock nut.
    Fig 45: Straightening Staked Portions

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    CAUTION: The lock nut is reverse threaded.
56. Use special tools MB991625 and MB990607 to remove the output shaft lock nut.
    Fig 46: Removing Output Shaft Jam Nut

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
57. Remove the bearing retainer mounting bolts.

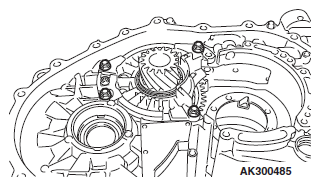

    Fig 47: Identifying Bearing Retainer Mounting Bolts

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
58. Tap on the rear end of the output shaft to remove the output shaft, taper roller bearing and collar.
    Fig 48: Removing Output Shaft

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
59. Tap out the outer race and the spacer.
60. Remove the snap ring.
61. Remove the differential bearing outer race from the transaxle case.

Fig 49: Removing Snap Ring

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
