Disassembly And Assembly: Notes

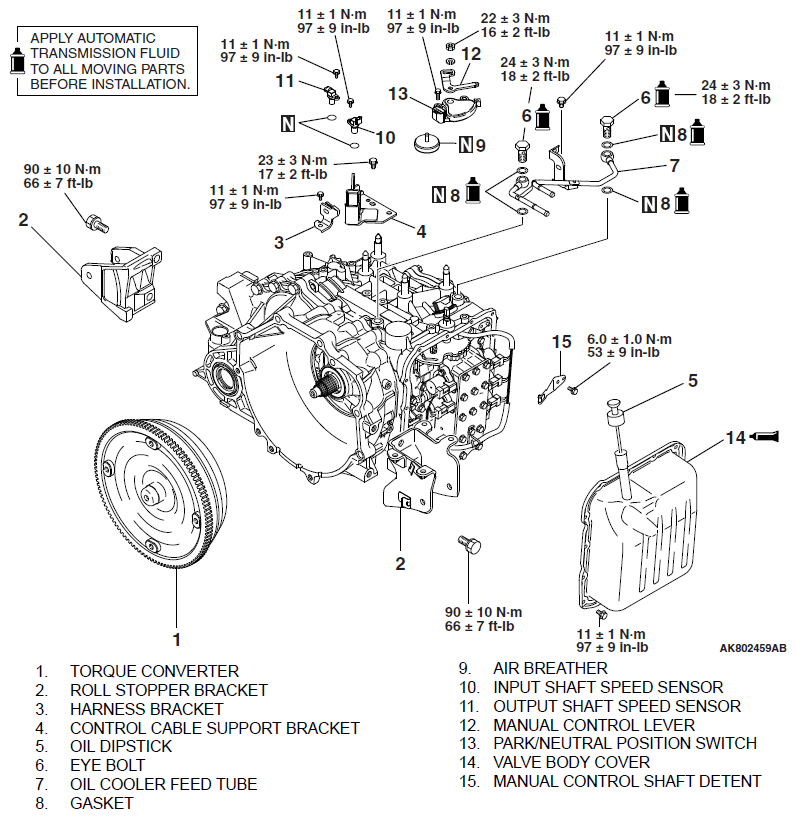

Fig 1: Exploded View Of Transaxle Components With Torque Specification (1 Of 4)
G06685645Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

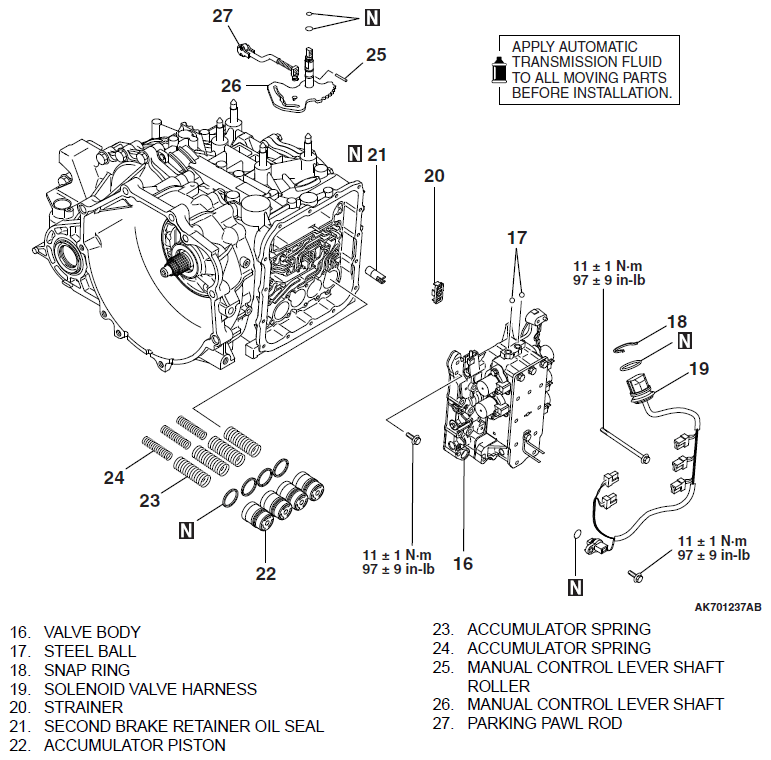

Fig 2: Exploded View Of Transaxle Components With Torque Specification (2 Of 4)
G06685646Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

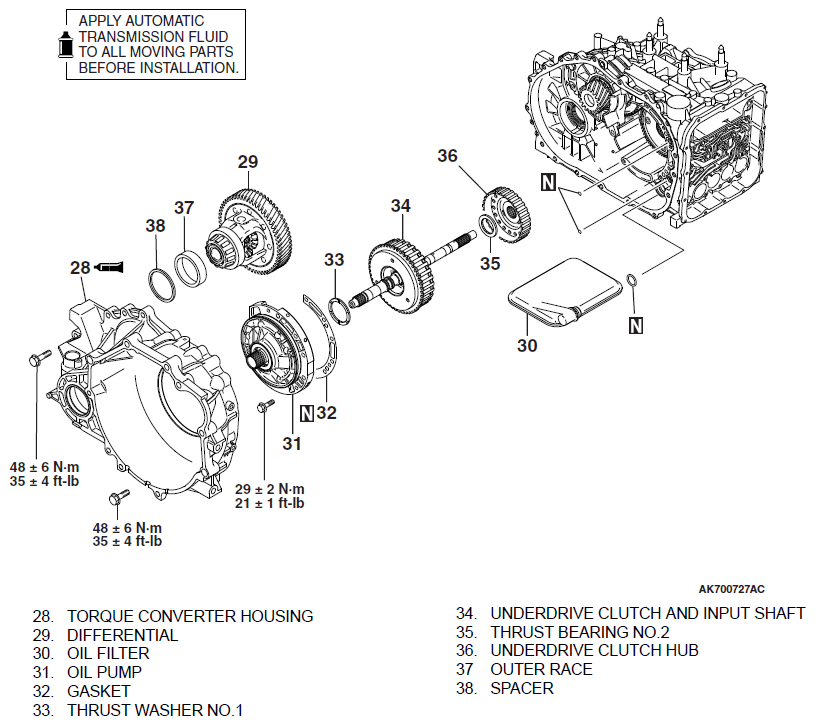

Fig 3: Exploded View Of Transaxle Components With Torque Specification (3 Of 4)
G06685647Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

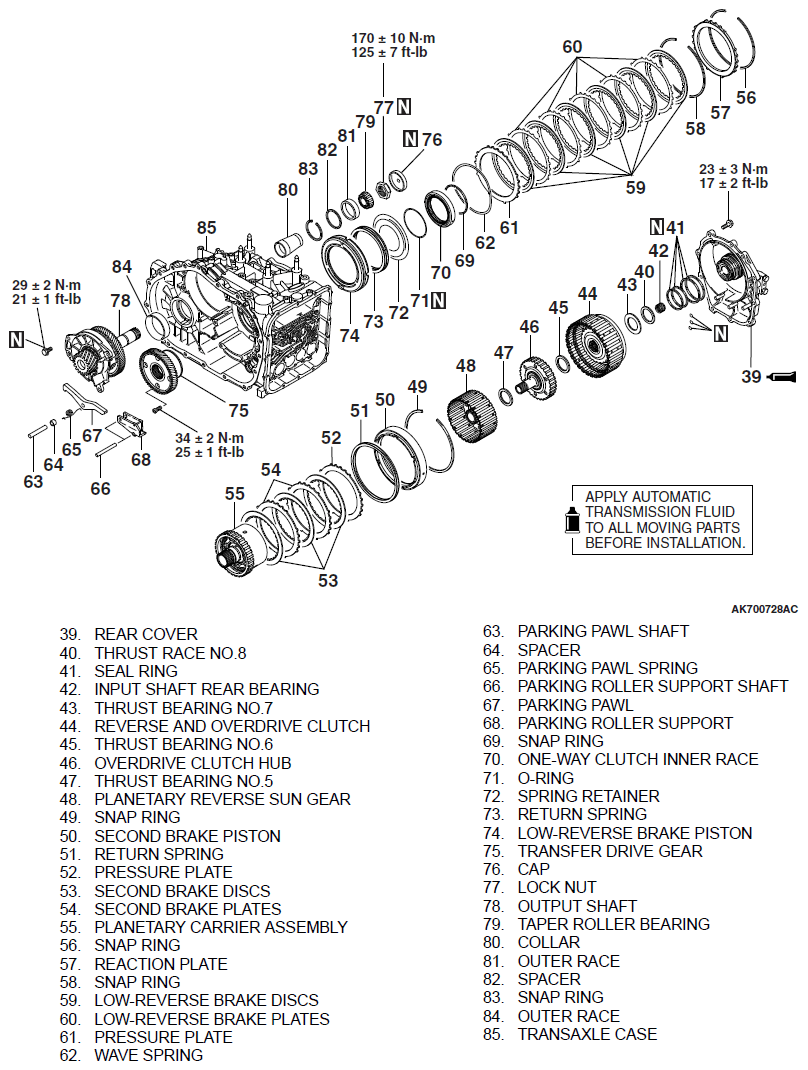

Fig 4: Exploded View Of Transaxle Components With Torque Specification (4 Of 4)
G06685648Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
