Disassembly And Assembly: Notes

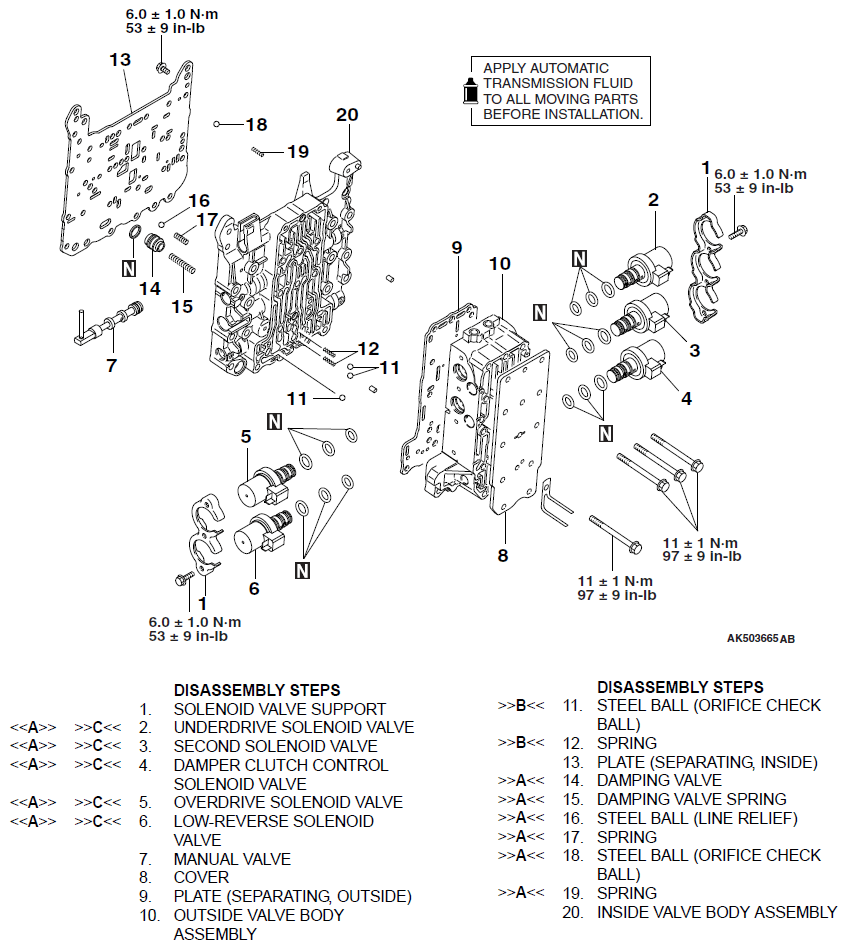

Fig 1: Disassembly/Assembly Of Valve Body Components With Torque Specification (1 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

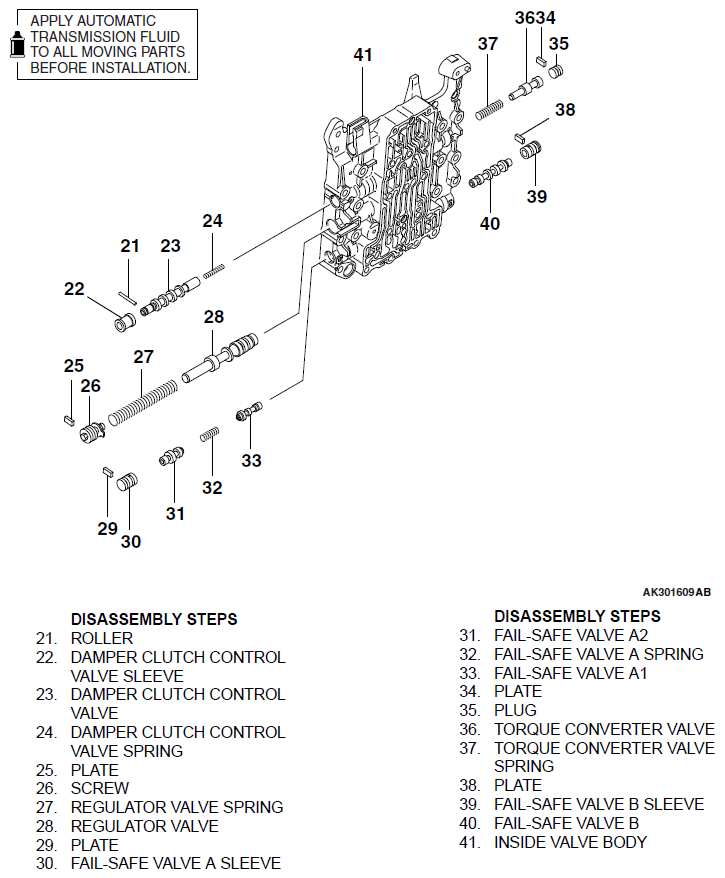

Fig 2: Disassembly/Assembly Of Identifying Valve Body Components With Torque Specification (2 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

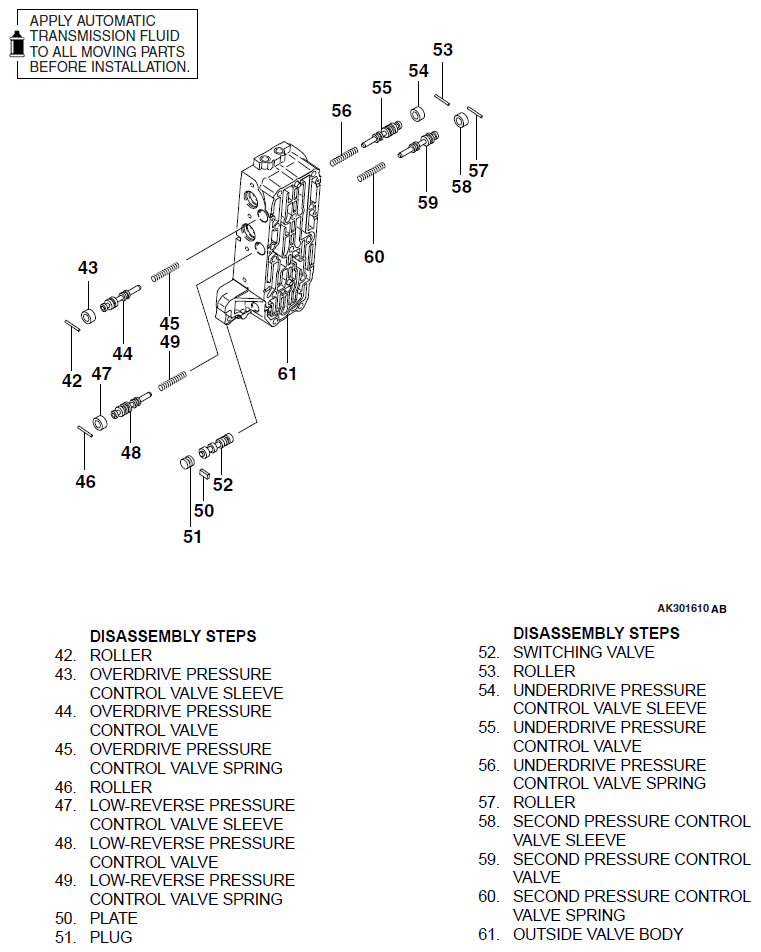

Fig 3: Disassembly/Assembly Of Valve Body Components With Torque Specification (3 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
