Ignition System
›
Camshaft Position Sensor
›
Removal And Installation <3.8L Engine>
Removal And Installation <3.8L Engine>

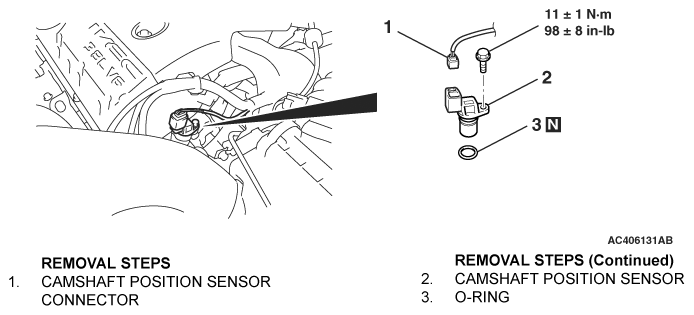

Fig 1: Removal/Installation Of Camshaft Position Sensor With Torque Specifications (3.8L Engine)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
