Removal And Installation: Notes

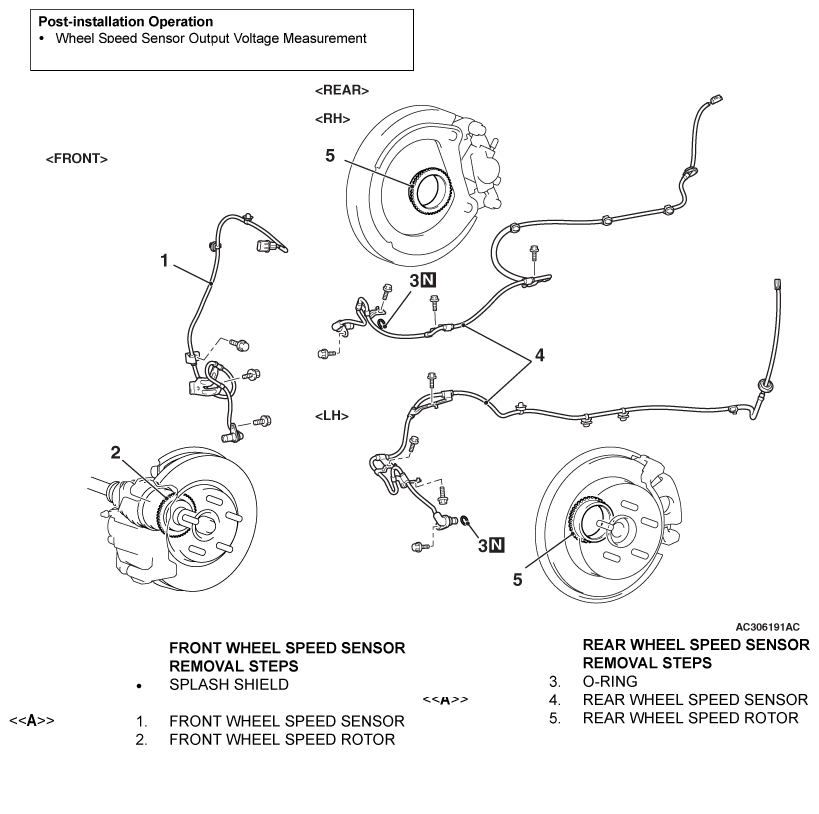

Fig 1: Wheel Speed Sensor & Related Components

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: Front wheel speed rotors are integrated with the BJ assembly of the drive shaft and cannot be disassembled.

NOTE: Rear wheel speed rotors are integrated with the rear hub assembly and cannot be disassembled.
