Removal And Installation - 2.4L Engine
›
Notes
Removal And Installation - 2.4L Engine: Notes

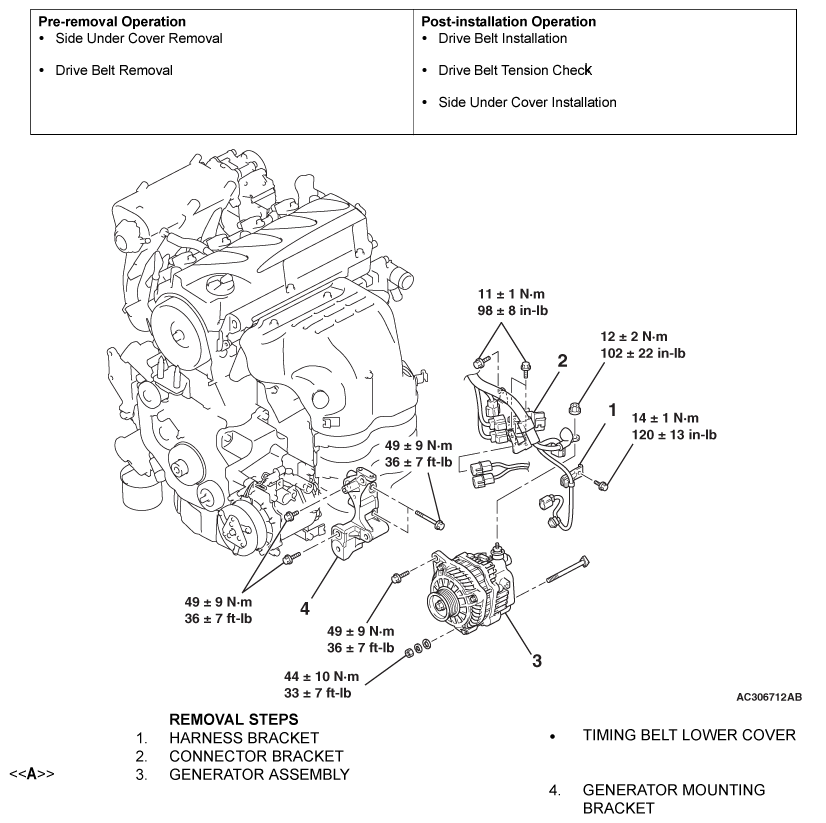

Fig 1: Generator Assembly Components With Torque Specifications (2.4L Engine)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
