Removal And Installation - 2.4L Engine: Notes

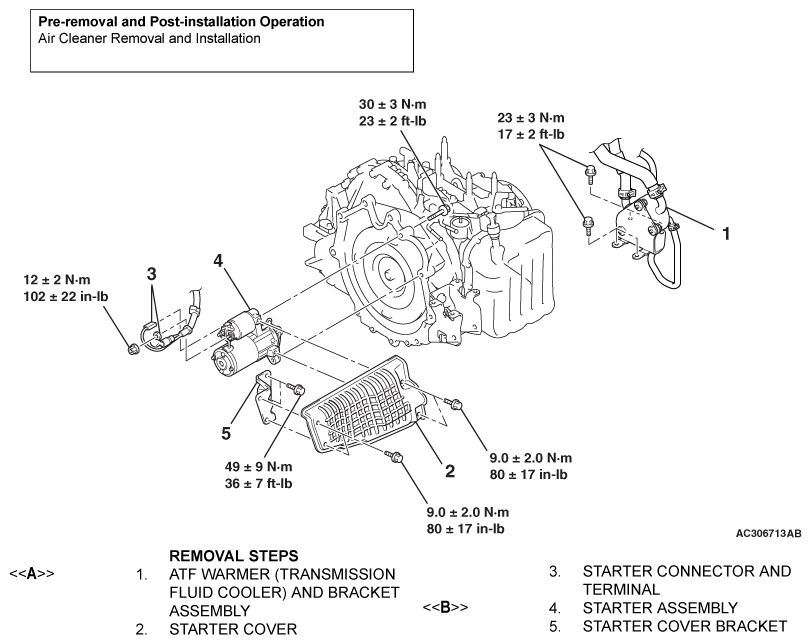

Fig 1: Removal/Installation Of Starter Motor Assembly With Torque Specifications (2.4L Engine)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
