Fuel Pump Module

NOTE: For the removal and installation procedures, refer to the FUEL PUMP MODULE REPLACEMENT PROCEDURE in On-Vehicle Service.

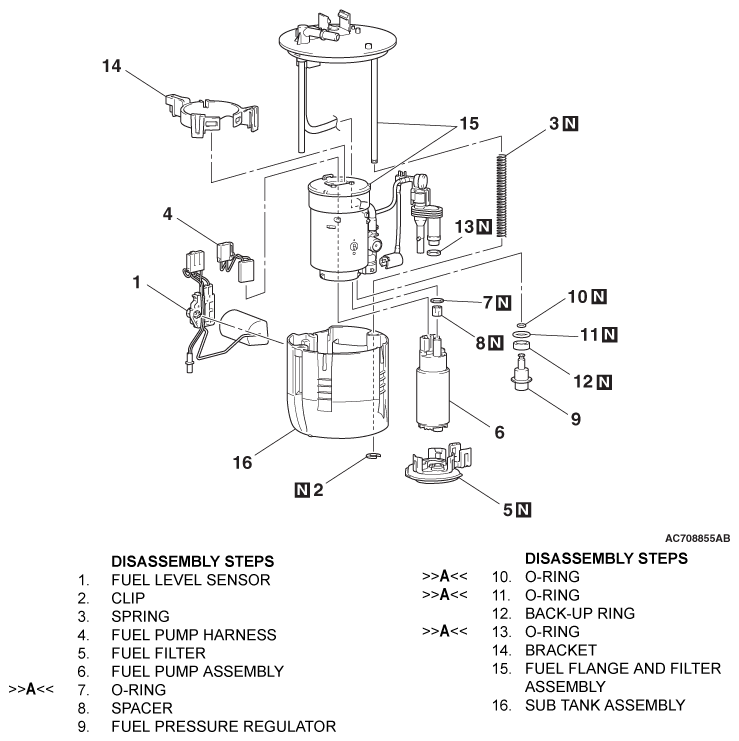

Fig 1: Exploded View Of Fuel Pump Module

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
