Removal And Installation - 2.4L Engine
›
Notes
Removal And Installation - 2.4L Engine: Notes

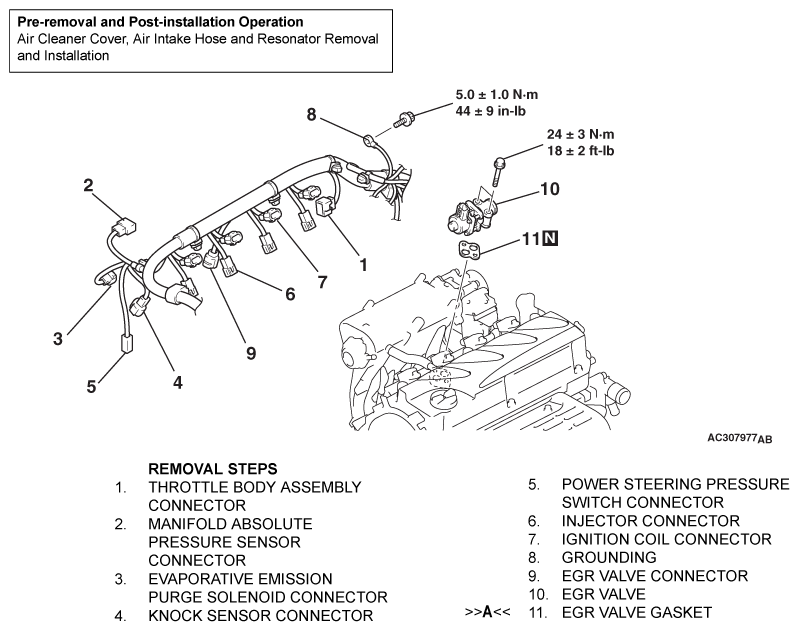

Fig 1: Removal/Installation EGR Valve (2.4L Engine) With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
