Vacuum Hose Routing
›
2.4L Engine
2.4L Engine

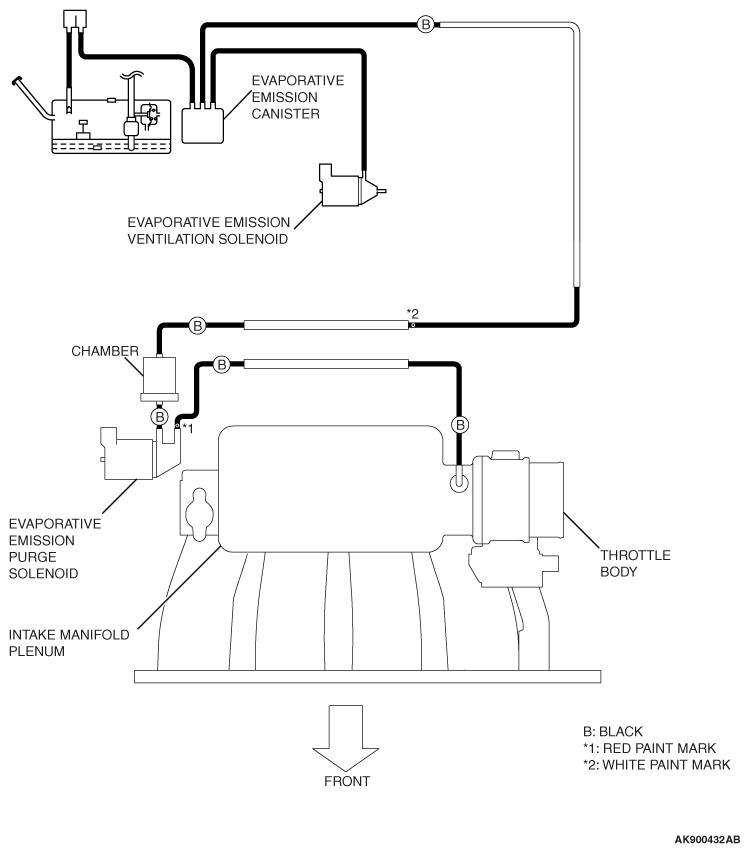

Fig 1: Vacuum Hose Routing (2.4L Engine)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
