Removal And Installation: Notes

CAUTION:

Refer to SRS SERVICE PRECAUTIONS and AIR BAG MODULE AND CLOCK SPRING before removing the passenger's (front) air bag module.
Do not subject the SRS-ECU to any shocks when removing or installing the instrument panel.

The following bolts and screws are used for installing the instrument panel. Bolts and screws are indicated as marks shown in the illustration in the appropriate sections of "REMOVAL AND INSTALLATION" and "DISASSEMBLY AND ASSEMBLY."

BOLTS AND SCREWS SYMBOL CHART

Name	Symbol	Size (D x L) mm	Color	Shape
TAPPING SCREW	a	5 x 12	BLACK	Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
	b	5 x 16	-	Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
	c	5 x 20	BLACK	Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
	d	6 x 16	GREEN	Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
	e	8 x 15	-	Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
WASHER ASSEMBLY BOLT	f	6 x 25	-	Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
WASHER ASSEMBLY BOLT	g	6 x 16	-	Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 1: Exploded View Of Instrument Panel Assembly (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

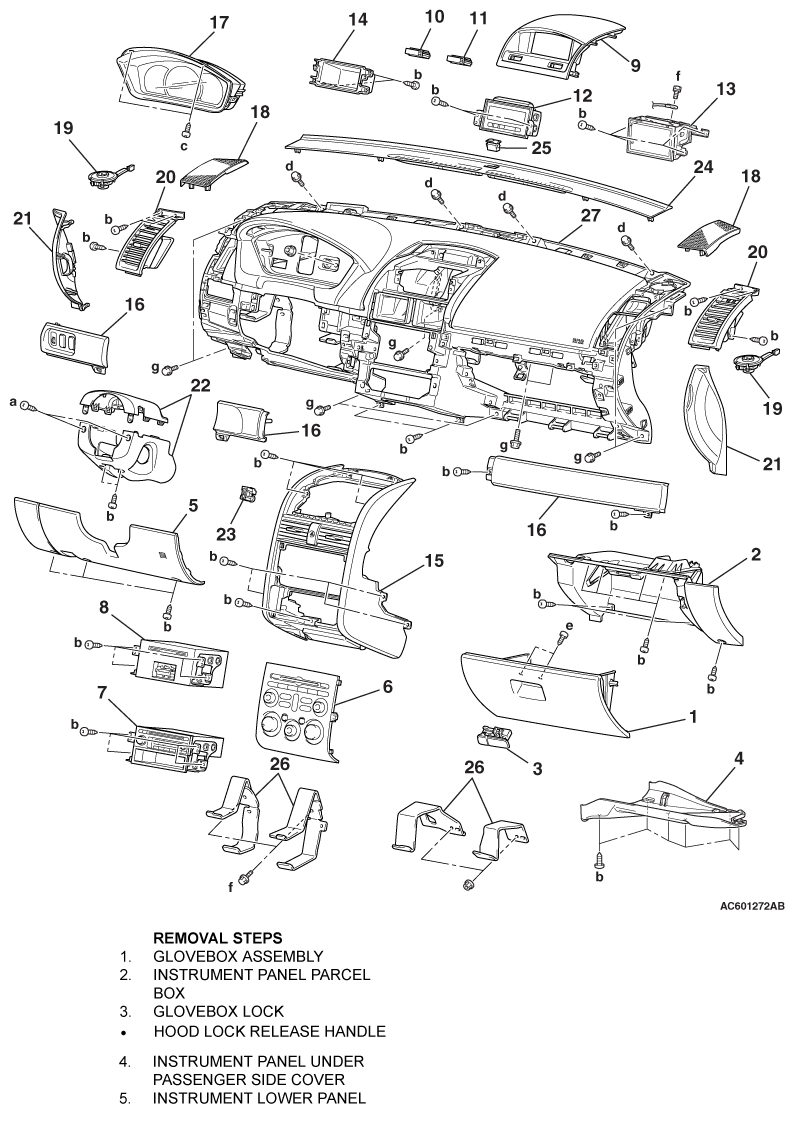

Fig 2: Exploded View Of Instrument Panel Assembly (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
