Disassembly And Assembly: Notes

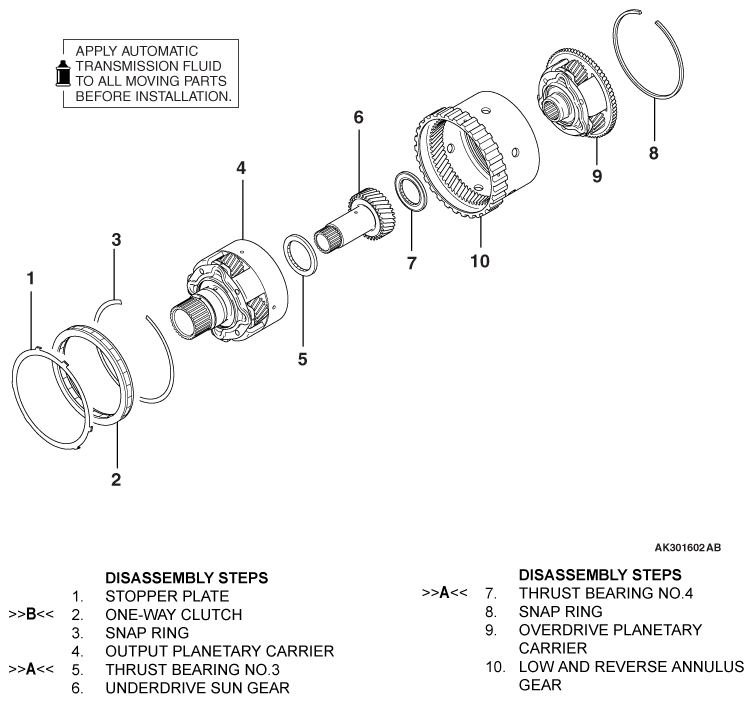

Fig 1: Planetary Gear Components
G06717780Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
