RH Side

WARNING:
  • Never attempt to disassemble or repair the occupant classification-ECU or the occupant classification sensor. If faulty, replace it.
  • Do not drop or subject the occupant classification-ECU and occupant classification sensor to impact or vibration. If denting, cracking, deformation, or rust are discovered in the occupant classification-ECU or the occupant classification sensor, replace it with a new occupant classification-ECU or the occupant classification sensor.

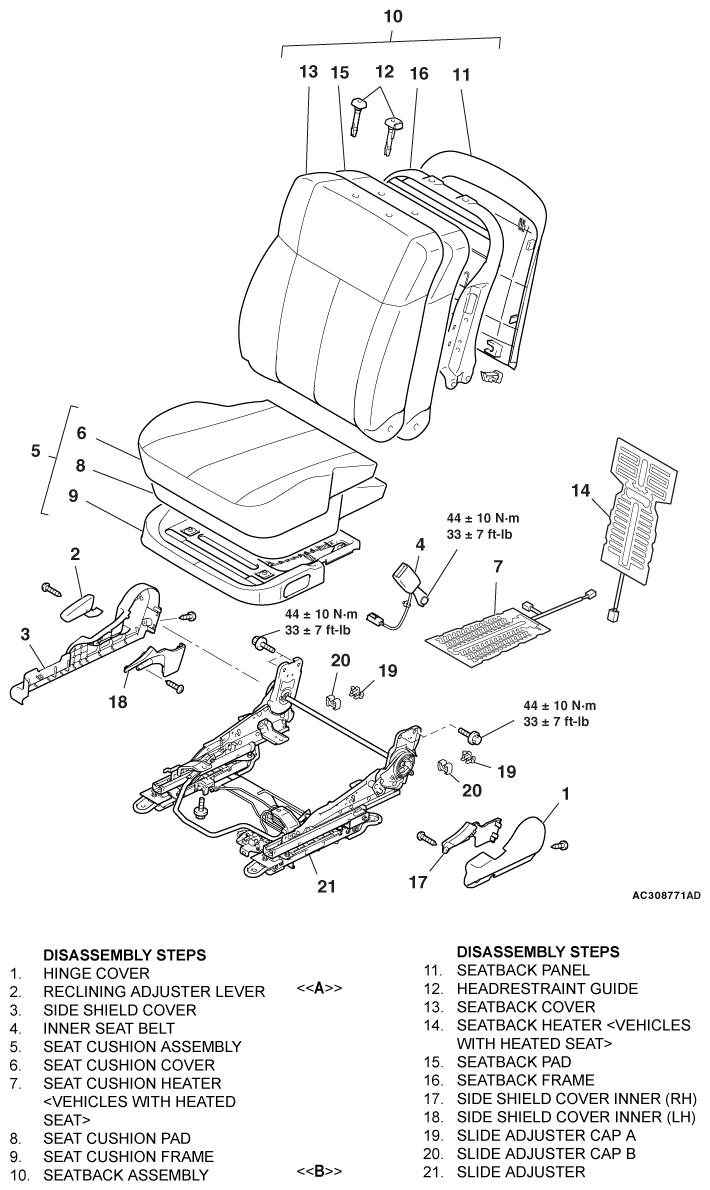

Fig 1: Exploded View Of Front Seat Assembly With Torque Specifications - RH Side
G06710702Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
