Section 25 (Door System - Lancer Evolution)
›
Door Assembly
›
Removal And Installation
›
Notes
Removal And Installation: Notes
WARNING:
This page is about a different variant/trim than selected.

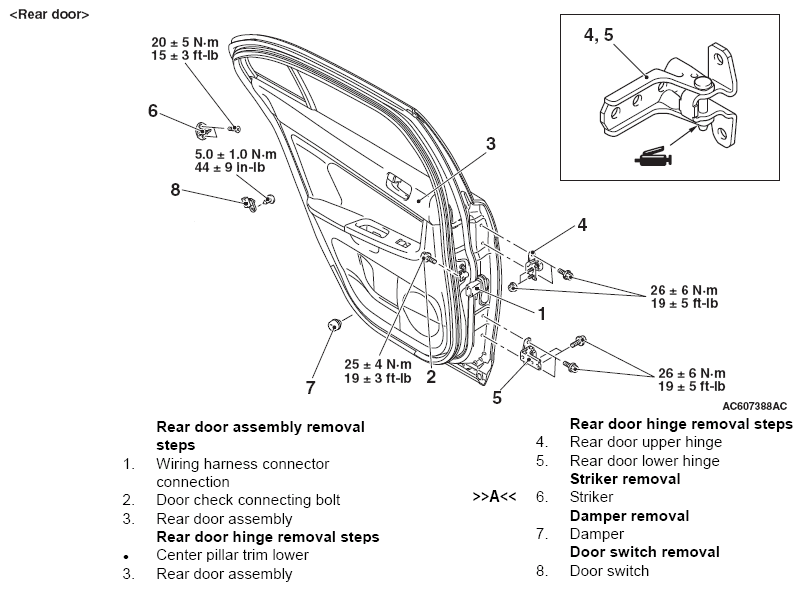

Fig 1: Removal/Installation Of Door Assembly Components With Torque Specifications (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

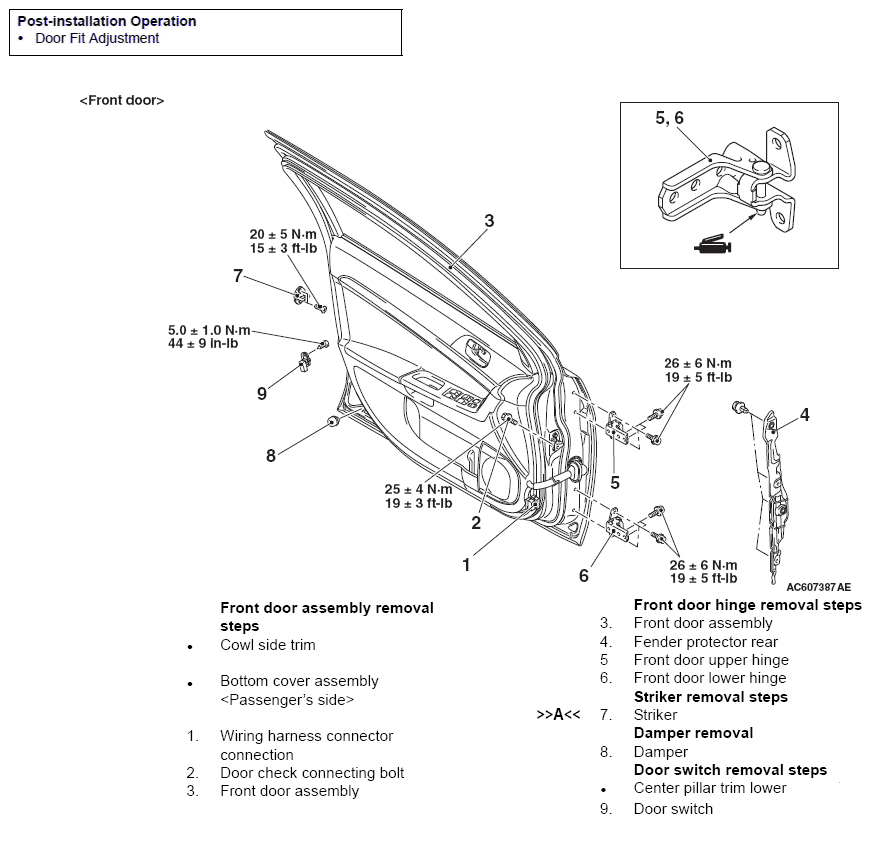

Fig 2: Removal/Installation Of Door Assembly Components With Torque Specifications (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
