Removal And Installation: Notes

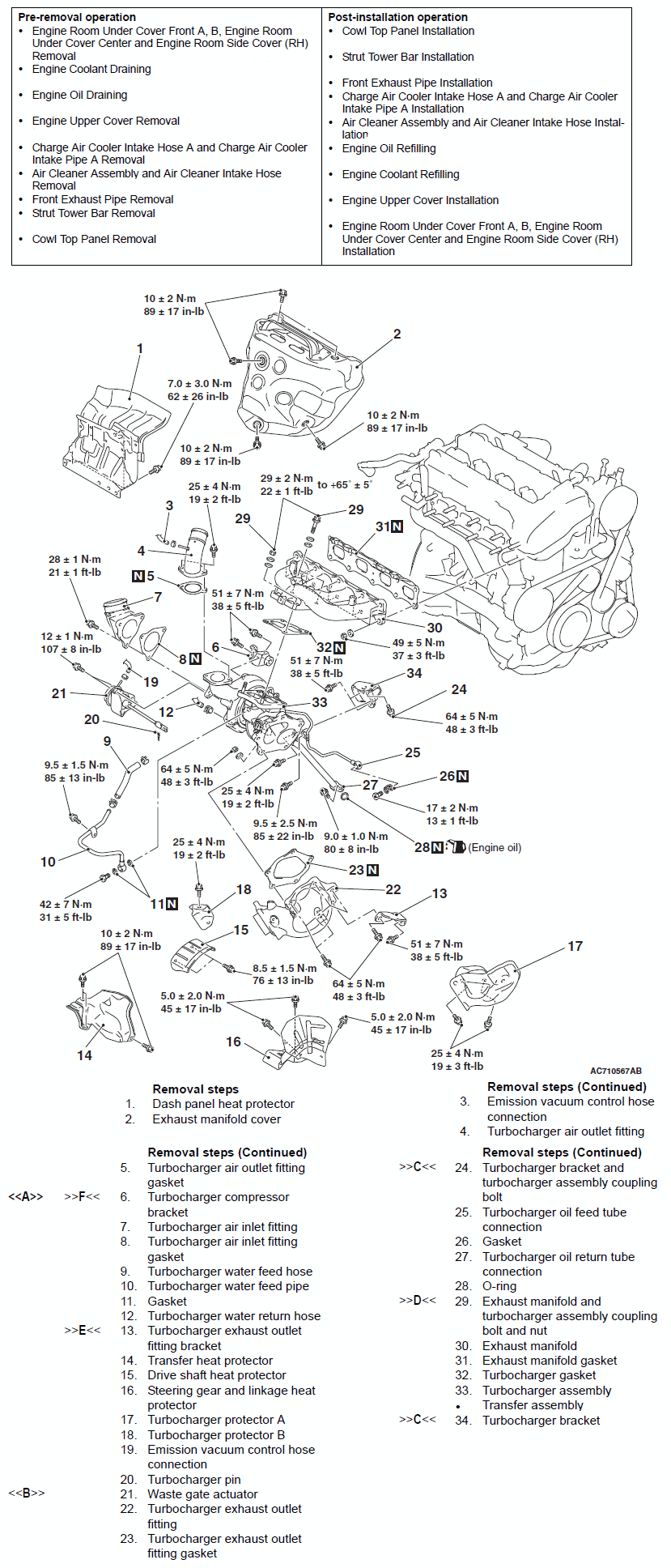

Fig 1: Removing/Installing Exhaust Manifold & Turbocharger Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

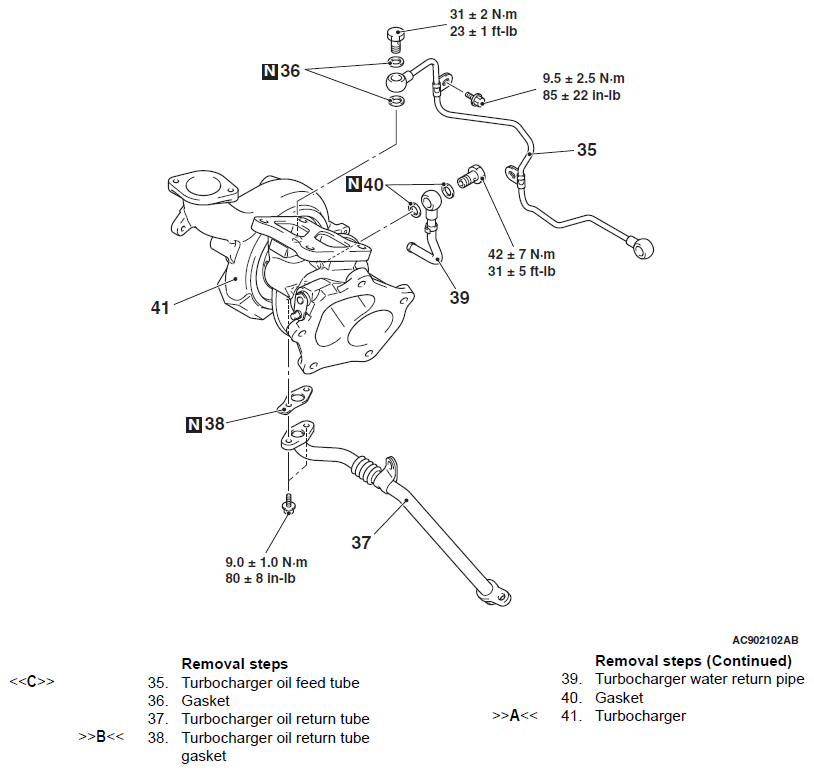

Fig 2: Removing/Installing Turbocharger, Turbocharger Oil Return Tube & Gasket With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB992274: Palm Socket
• MB991614: Angle Gauge
