Meter Information Switch Check
WARNING: This page is about a different variant/trim than selected.

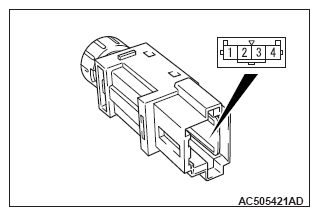

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. METER SWITCH CONDITIONS
| Switch position |
Tester connection |
Specified condition |
| Pressed |
1-4 |
Continuity exists (2 ohms or less) |
| Released |
1-4 |
Open circuit |
