Special Tools

WARNING: This page is about a different variant/trim than selected.
SPECIAL TOOLS

Tool Tool number and name Supersession Application

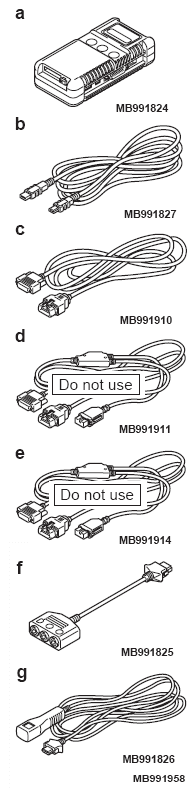

G08293719
 MB991958
  1. MB991824
  2. MB991827
  3. MB991910
  4. MB991911
  5. MB991914
  6. MB991825
  7. MB991826

M.U.T.-III Sub Assembly
  1. Vehicle communication interface (V.C.I.)
  2. M.U.T.-III USB Cable
  3. M.U.T.-III Main Harness A (Vehicles with CAN communication system)
  4. M.U.T.-III Main Harness B (Vehicles without CAN communication system)
  5. M.U.T.-III main harness C (for Chrysler models only)
  6. M.U.T.-III Adapter Harness
  7. M.U.T.-III Trigger Harness
 MB991824-KIT
NOTE: G: MB991826 M.U.T.-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.
CAUTION: For vehicles with CAN communication, use M.U.T.-III main harness A to send simulated vehicle speed. If you connect M.U.T.-III main harness B instead, the CAN communication does not function correctly.
Check of the electronic control AWD (the diagnostic trouble code display, service data display, freeze frame data display, actuator test with scan tool)
G08293720
 MB991223
Harness set
  1. MB991219

    Test harness

  2. MB991220

    LED harness

  3. MB991221

    LED harness adapter

  4. MB991222

Probe		 MB991223 Continuity check and voltage measurement at the AWD-ECU wiring harness connector
G08294095
 MB992006
Extra fine probe		 General service tool
G08294158
 MB990784
Ornament remover		 Drive mode selector removal
